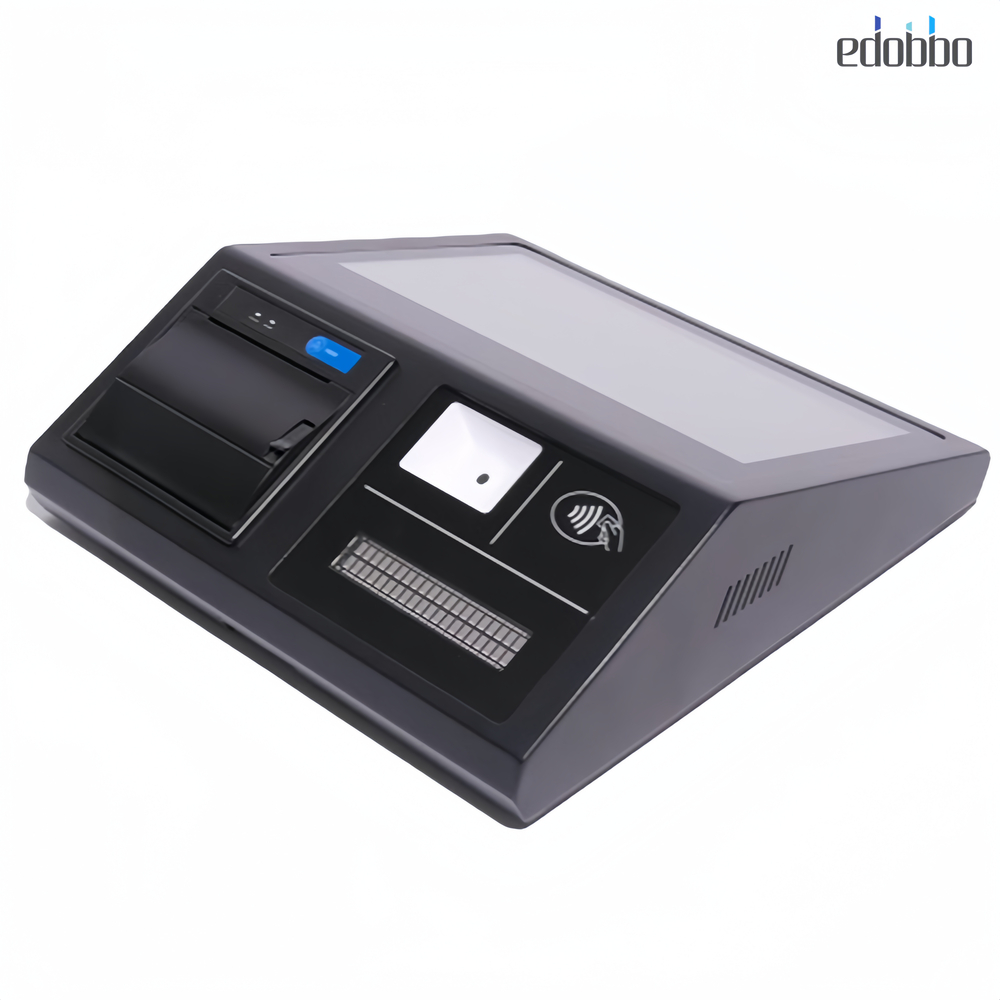

ED116A

1.CPU:RK3288/RK3568 2.Resolution:1920*1080 3.Built-in wifi and buletooth 4.With buletooth and wifi

Send Inquiry
Download

Features

Technical Sheet
                                                                                      Android  RK3288                                                          Android RK3568

Processor RK3288, Quad core A17, 1.8GhzRK3568 Quad-core  Cortex-A55 up to 2.0Ghz
Memory DDR3-2GB, Max 4GB DDR4-2GB, Max 4GB
Storage ROM 16G ( default )32G /64GB
Printer 80mm thermal printer  with autocutter
Support  thermal receipt  & thermal sticker
Commands : ESC/ POS, OPOS driver
Paper size : 80*70mm

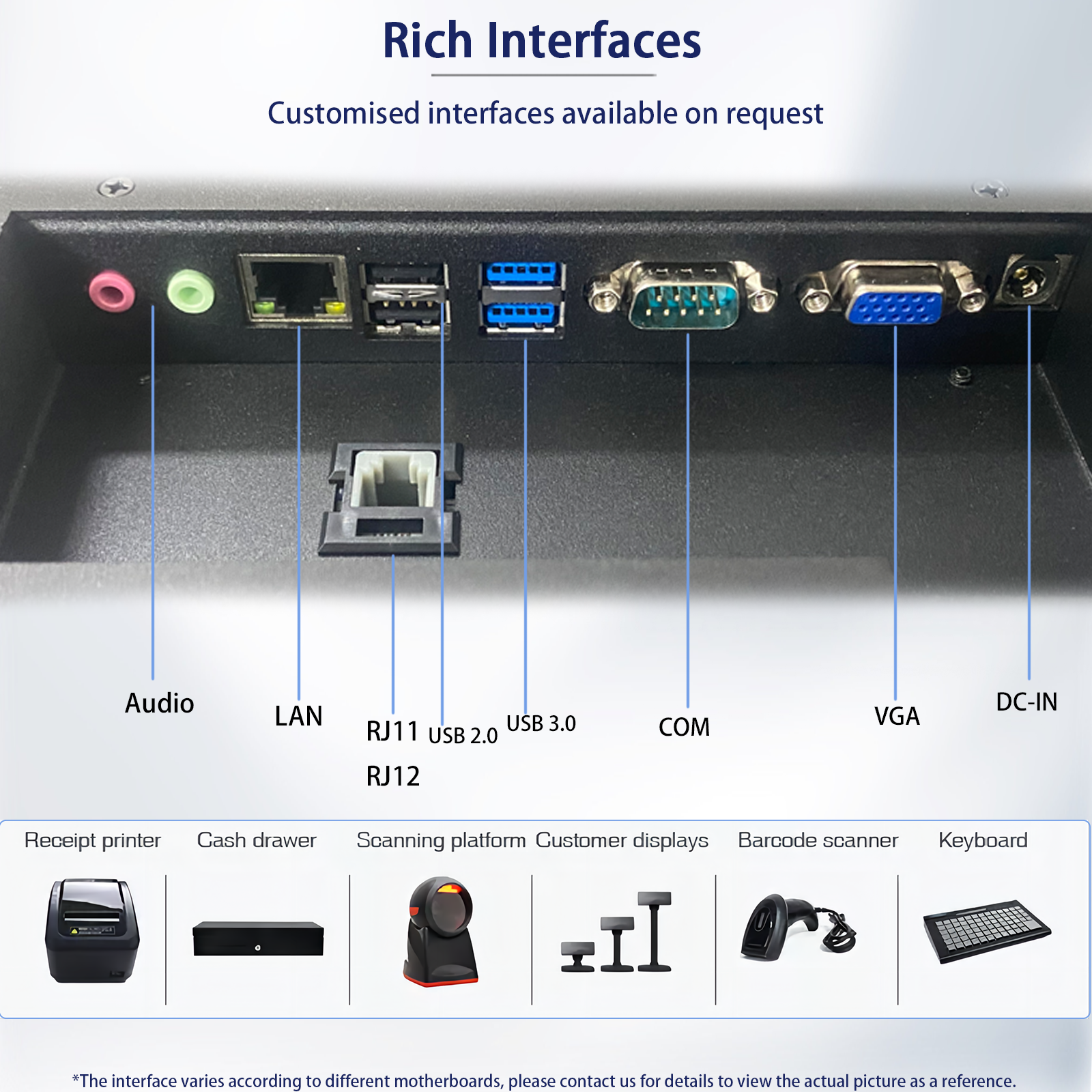

I/O USB5, (3.0*2, 2.0*2, OTG *1)
Serial port :  UART*1
RJ11*1
LAN : RJ45 *1
TF slot *1
SIM slot*1
Audio *1		USB5 (3.0*2, 2.0*2, OTG*1)
HDMI*1
LAN: RJ45*1
TF slot*1
SIM slot *1
Audio *1
RS232*2
Display 14"IPS ( BOE brand)
Brightness 250NITS
Resolution1920* 1080
Speaker 1*3W (Optional )
Touch screenTrue Flat Capacitive Touch
WI-FI2.4G2.4G/5G
Bluetooth BT3.0/BT4.0/4.2/BLEBT3.0/BT4.0/4.2/BLE
LAN1*RJ45   WLAN 802.11a/b/g/n/ac/    1000M
4G4G module (optional )
OSAndroid 7.1/8.1Android11
Power adaptor Device : 84W/12 V DC Jack Adapter
Power  supply : from 100 Vacto  240 Vac
Dimensions335 mm (L) *238mm (W) *339mm (H)
Weight 4.5KG
