MN28：Mini PC Intel Baytrail N2840/J1800/J1900

MN28：Mini PC Intel Baytrail N2840/J1800/J1900Standard Parameters - MN28 Mini PCCPUIntel Baytrail N2840/J1800/J1900 TDP: 10W 2

Send Inquiry

Features

Standard Parameters - MN28 Mini PC
CPU	Intel Baytrail N2840/J1800/J1900 TDP: 10W 22NM process technology
Memory	Supports one DDR3L/SO-DIMM slot with a maximum capacity of 8GB.
Graphics Card	Integrated Intel HD Graphics core graphics
Network Card	Onboard with 2 RTL8111H 10/100/1000 adaptive Gigabit Ethernet cards
Storage	Supports one MSATA slot and 2.5-inch SATA storage.
Expansion Interface	Provide a MINIPCIE slot that supports half-length wireless network cards or 4G modules.

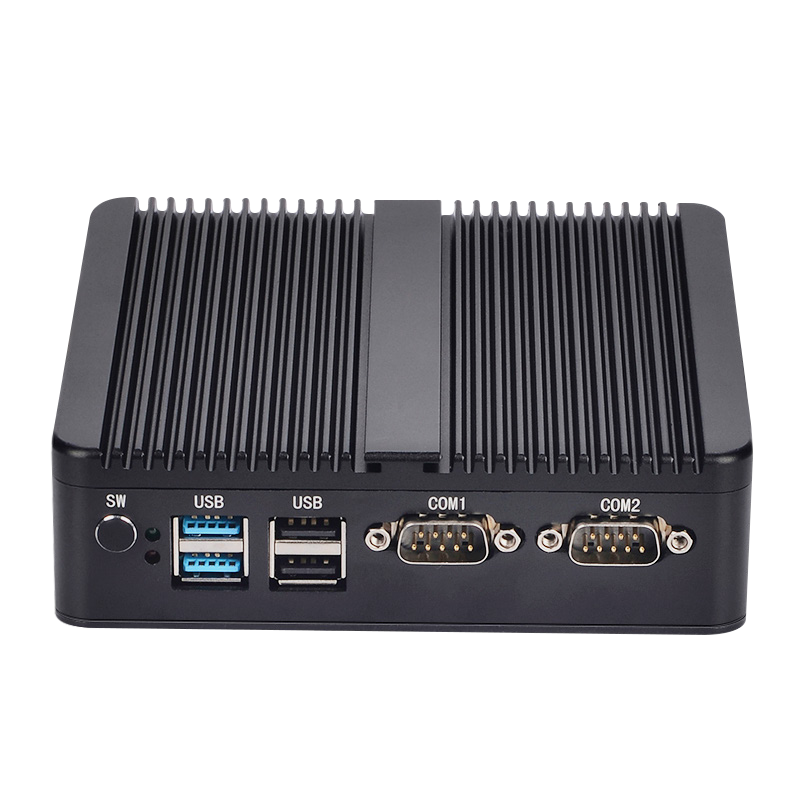

I/O Parameters	1PWR, 1USB3.0,3USB2.0, 1COM1(RS232),1*COM2(RS485)

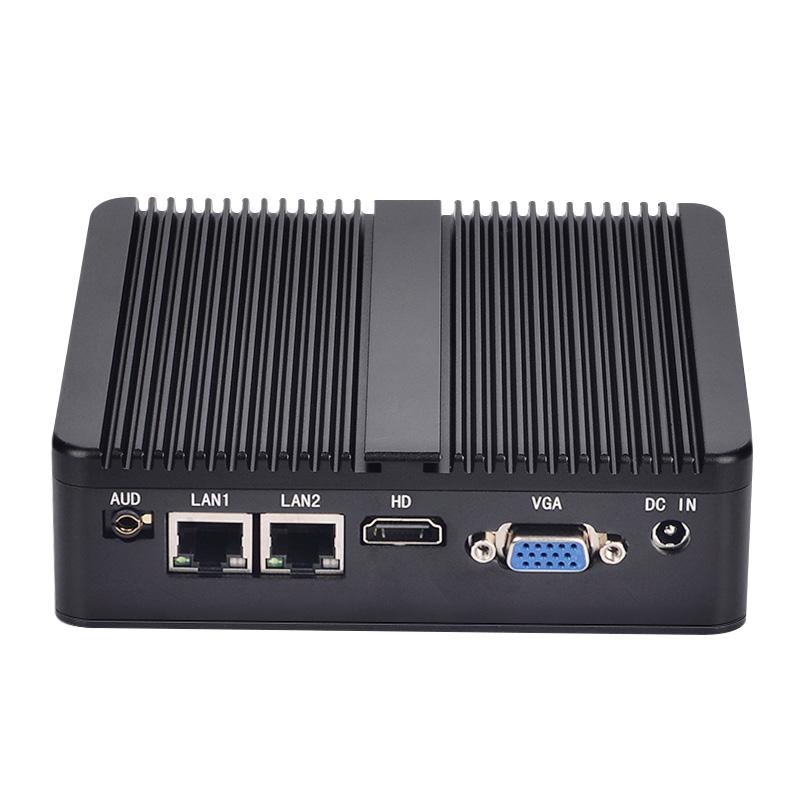

I/O Parameters	Back Panel Interface: 1Audio; 2RJ45; 1HDMI; 1VGA 1*DC12V power input interface
Power Supply	Supports DC 12V direct current input; Interface (2.5 5525)
Chassis Parameters	Color: Black Material: Aluminum alloy Heat dissipation: Fanless passive cooling
Chassis Parameters	Overall dimensions: 13.612.740cm Packing box dimensions: 20.1712cm
Temperature and Humidity	Operating Temperature: 0°C~55°C (32°F~131°F)
	Operating Humidity: 10%~95% @40°C non-condensing
	Storage Temperature: -40°C~+55°C (-40°F~176°F)
Operating System	Supported Systems: Windows 7/8/10, Linux

Services:

1. All products have been tested and 100% inspection before shipment.

2. Support design your logo and imprint on products and let your logo shine anywhere.

3. Offer customized packaging services.

4. We can provide OEM/ODM services based on customer's requirements.

5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.

About Product packaging

MetInfo enterprise content manager system | MetInfo CMS

The product uses yellow corrugated boxes by default. We support OEM services.

( If you need customized color box packaging, please consult our customer service.)
