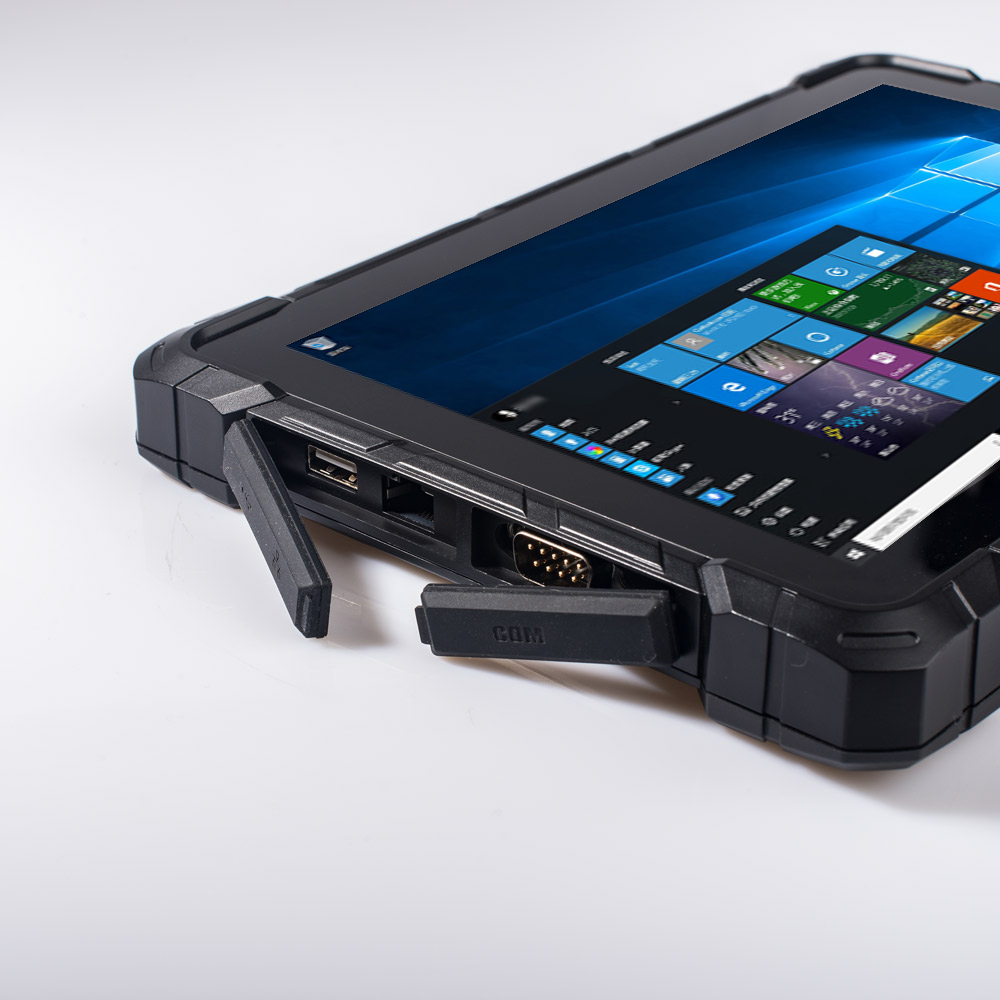

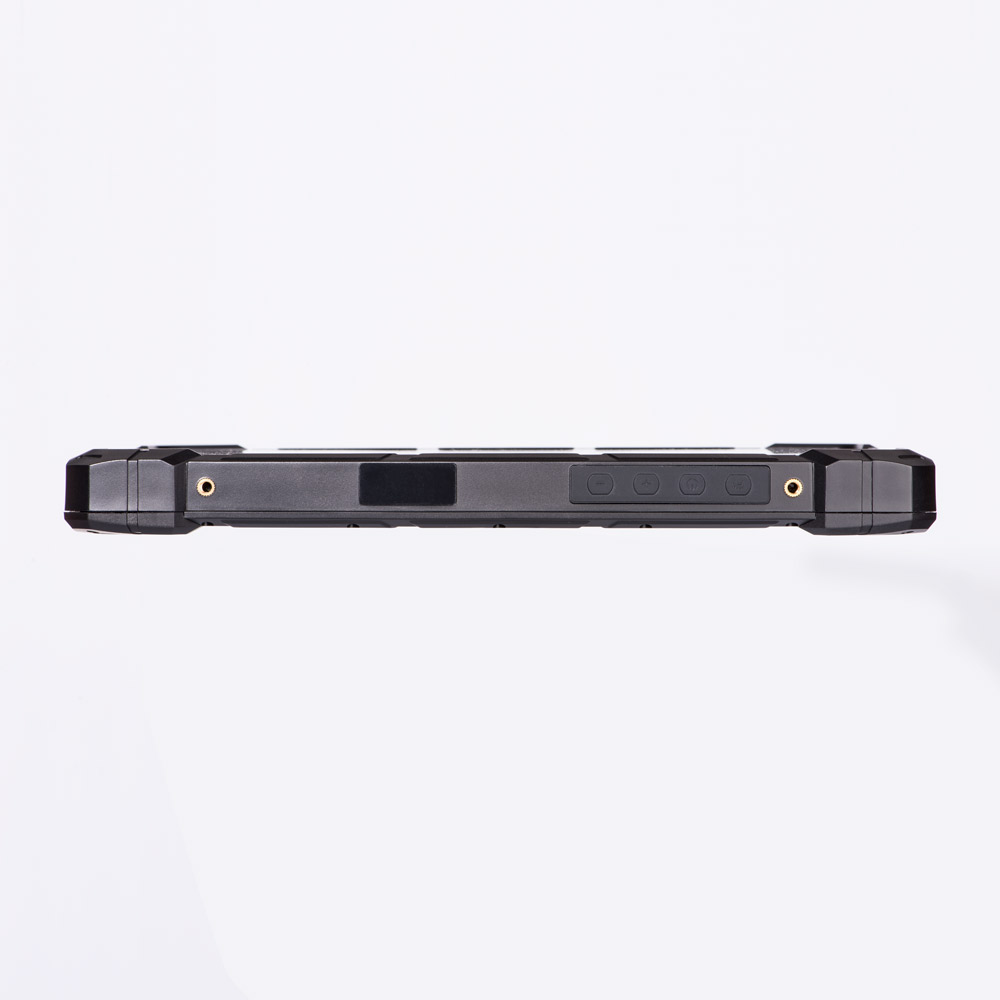

ED-PC102 (Intel Z8350 + Windows + IP67 Rugged Tablet PC)
Product Number: ED-PC102 (Intel Z8350 + Windows + IP67 Rugged Tablet PC)Key FeaturesIP67, 10.1" IPS + Z8350 + 4GB +64GB
Features
| Product Number: ED-PC102 (Intel Z8350 + Windows + IP67 Rugged Tablet PC) | ||||||
| Key Features | IP67, 10.1" IPS + Z8350 + 4GB +64GB + WiFi 2.4G&5G Dual band + 1000Mbps + HDMI1.4 + RS-232(DB9)+ USB3.0 | |||||
| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | IP67 Rugged Tablet PC | ||||
| Dimensions | 280×184×26.5mm | |||||
| Weight | 1.2KG | |||||
| LCD | Screen Size | 10.1" | ||||
| Screen Resolution | 1200×1920 (IPS+FHD+300ANSI) (Standrd) | |||||
| 800×1280 (IPS+HD+500ANSI) (Optional, For MOQ order) | ||||||
| TP | Touch Module | G+G Multi-Touch | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 12000mAh/3.7V | |||||
| Working Time | Over 8 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Cherry Trail x5-Z8350 Quad-Core | ||||
| Speed | 1.44GHz ~ 1.92GHz | |||||
| GPU | Type | Intel HD Graphics Gen8 | ||||
| Memory | Capacity | 4GB | ||||
| Storage | eMMC | 64GB | ||||
| SSD | / | |||||
| SATA 2.5“ HDD | / | |||||
| Camera | Front | 2M | ||||
| Rear | 5M | |||||
| Speaker | Built-in | 8Ω/1W with water proof | ||||
| Micphone | Built-in | Yes | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Broadcom AP6255/AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band | ||||
| Bluetooth | BT Module: Broadcom AP6255/AP6256 | Bluetooth4.0 | ||||
| 3G/4G LTE | Optional | Optional with external small PCBA | ||||
| QR code Scanners | Optional | Optional | ||||
| NFC | Optional | Optional | ||||
| GPS | BD2/GPS | Optional | ||||
| Fingerprinter | Capacitive fingerprint sensor | Optional | ||||
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan | ||||

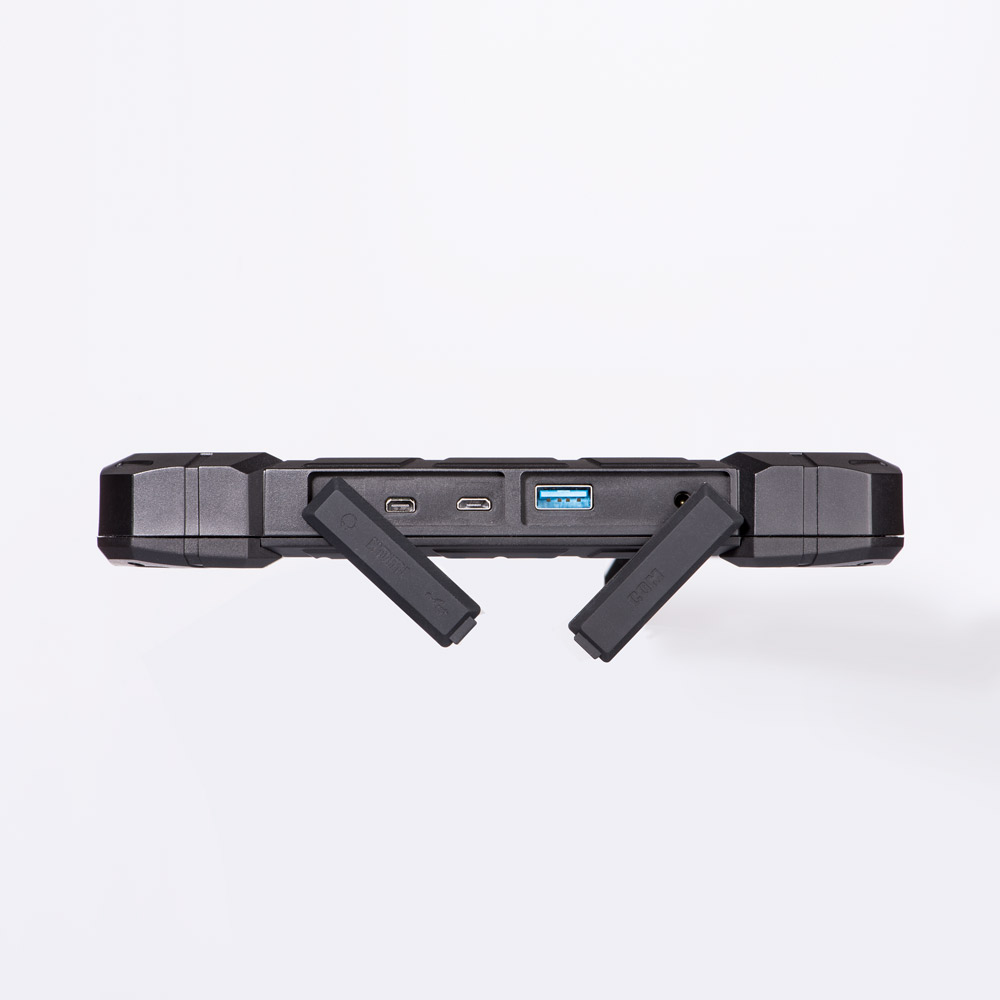

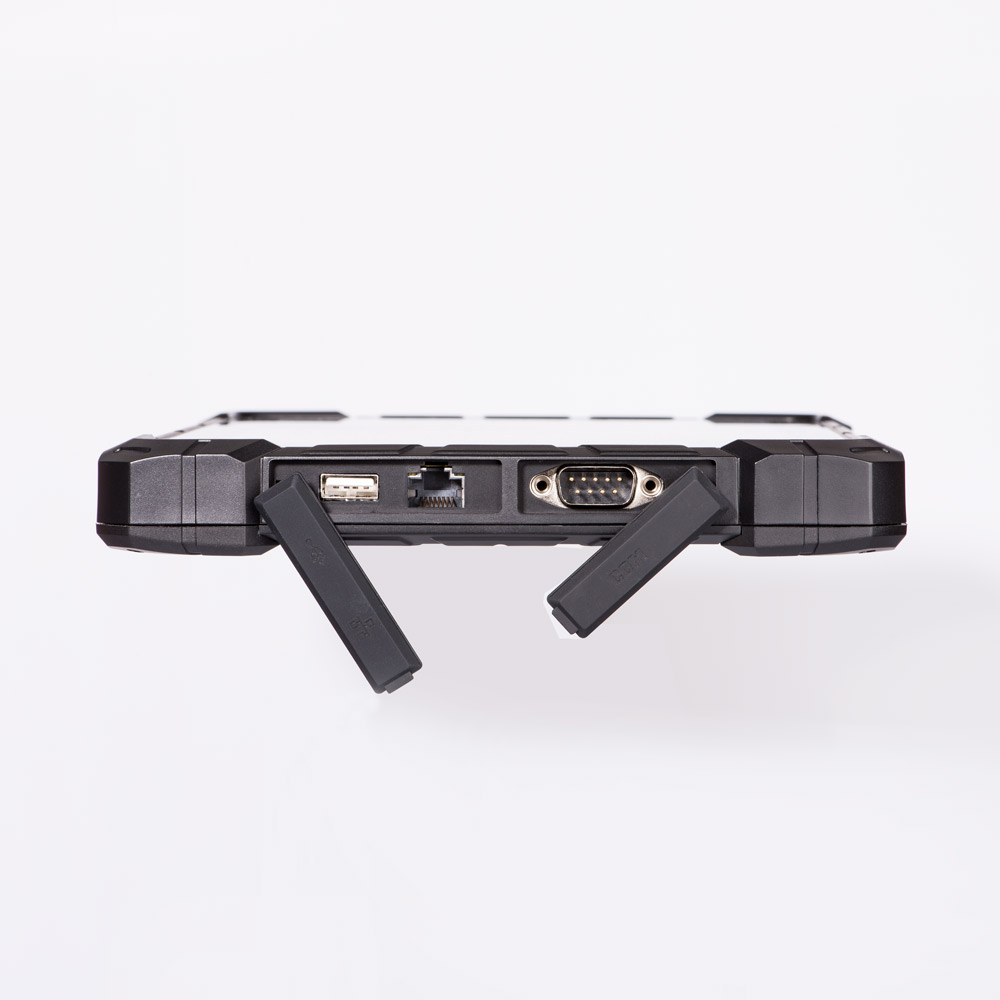

| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 | ×1pc | ||||
| USB2.0 | ×2pcs (USB2.0 TypeA×1 + Micro USB2.0×1) | |||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) | ||||
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional | ||||
| Audio Jack | 3.5mm standard | ×1pc | ||||
| HDMI | Micro HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| COM Port | DB9 (RS232) | ×1pc (External small PCBA) | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| CMOS Reset | Reset by Short Press | / | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 5V/3A | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| Handle Straps | Optional | Optional | ||||
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | / | ||||
| PXE | Preboot Execution Environment | / | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
| Environment: | ||||||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) | ||||
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||
| Certification: | ||||||
| IP67 | IP67 Certification | Yes | ||||
| Other | Other | Optional | ||||
Services:
1. All products have been tested and 100% inspection before shipment.
2. Support design your logo and imprint on products and let your logo shine anywhere.
3. Offer customized packaging services.
4. We can provide OEM/ODM services based on customer's requirements.
5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.
About Product packaging
MetInfo enterprise content manager system | MetInfo CMS
The product uses yellow corrugated boxes by default. We support OEM services.
( If you need customized color box packaging, please consult our customer service.)
