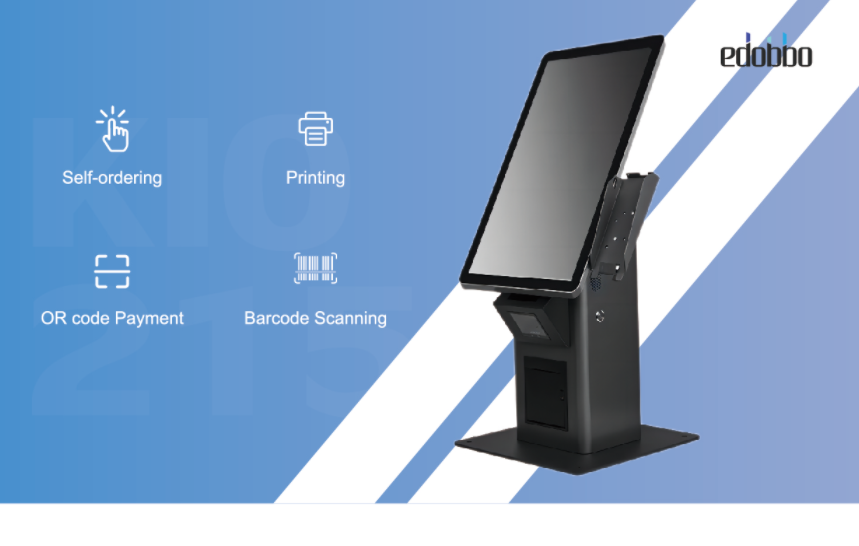

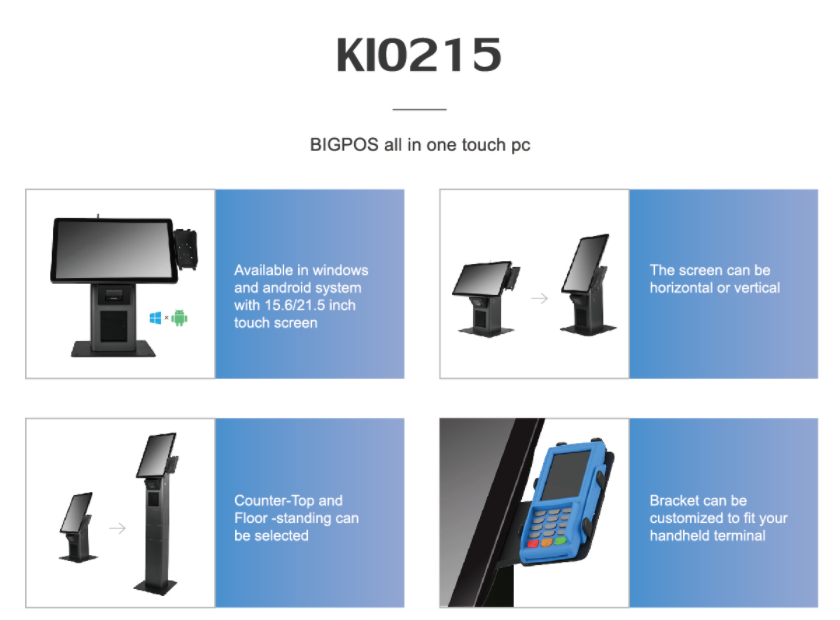

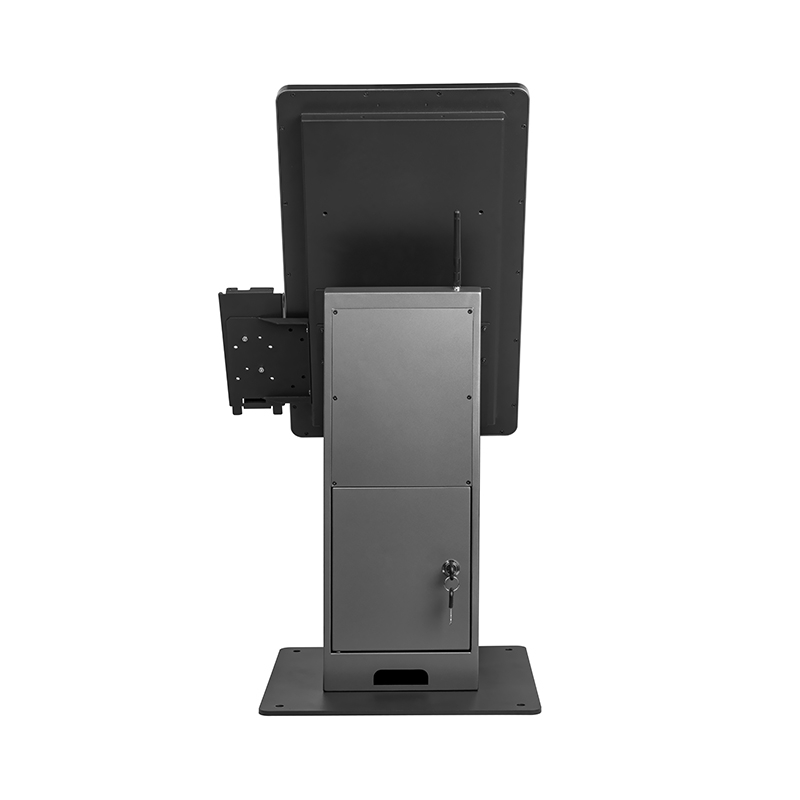

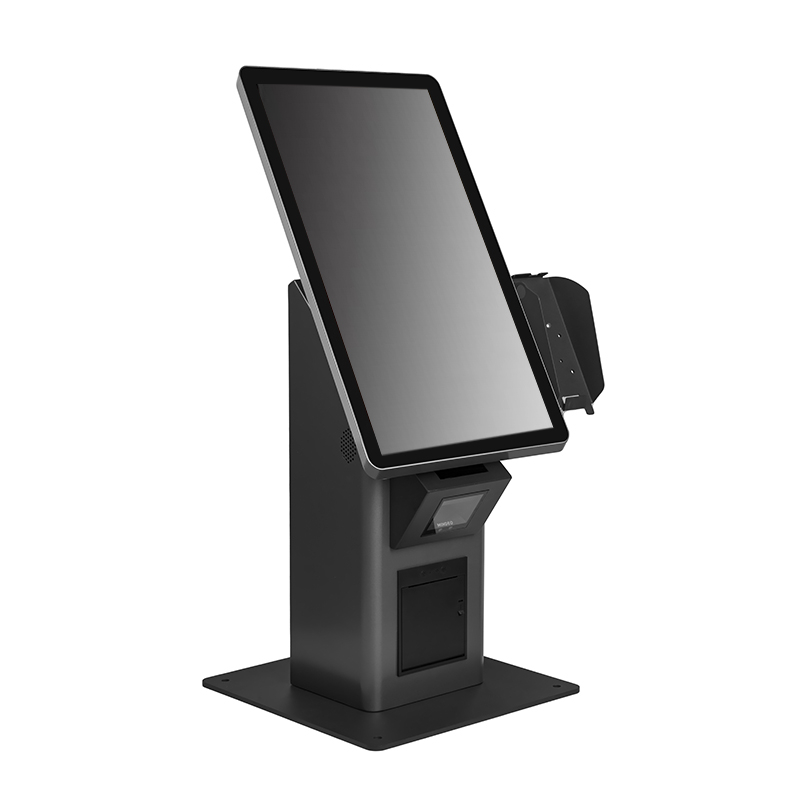

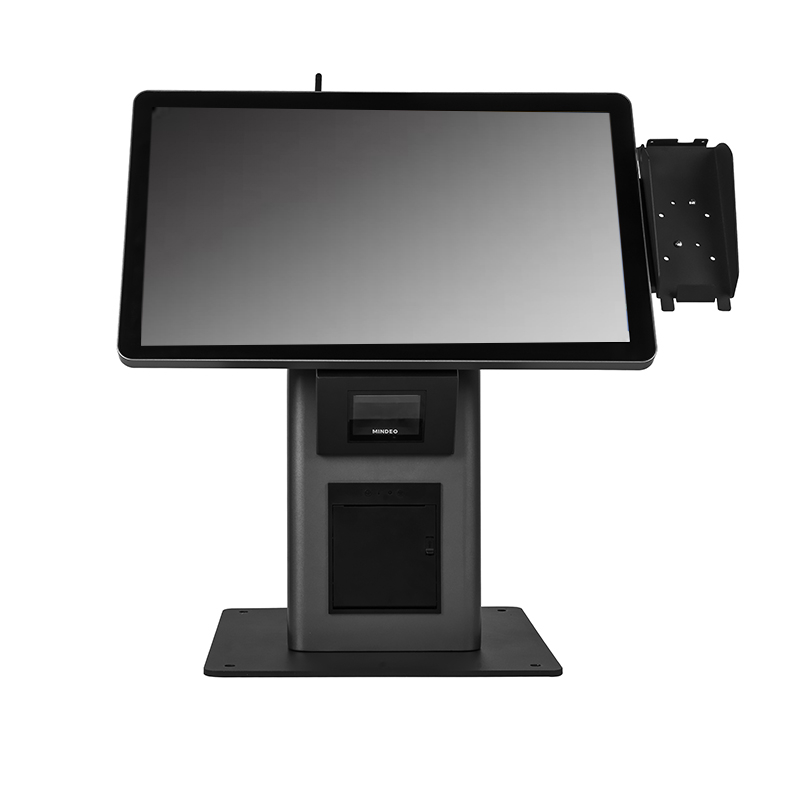

KIO215：BIGPOS built with thermal printer and scanner
DK215SpecificationsDisplay & Touch LCD21.5 Original LCDResolution1920*1080TouchscreenProjective Capacitive Touch ScreenWindow
Features
| DK215 | |
| Specifications | |
| Display & Touch | |
| LCD | 21.5 Original LCD |
| Resolution | 1920*1080 |
| Touchscreen | Projective Capacitive Touch Screen |
| Windows System | |
| Processor | Intel Celeron J1900 Quad-Core, Up to 2.42Ghz Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.6Ghz Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th High Performance CPU |
| System Memory | DDR2 SO-DIMM x 2, max. 32GB |
| Storage Device | SSD 32GB standard, up to 256GB |
| OS support | Windows 10, Window11，POS Ready7, Linux |
| Android System | |
| Processor | 32Bit Quad-Core ARM Cortex-A17，up to 1.8GHz |
| Cooling | Fanless |
| System Memory | DDR 2G up to 4GB |
| Storage Device | SSD 8GB standard, up to 32GB |
| OS support | Android 7.1/11 |
| I/O Expansion | |
| Serial Port | 1*COM(RS232) |
| Standard USB Port | 4*USB |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | 1*VGA or 1*VGA & 1*HDMI |
| Audio | 1*Mic-in, 1*Line-out |
| Expansion Slot | RJ11 |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| Thermal printer (Option) | |
| Printing Method | Direct Thermal |
| Printing Speed | 260mm/s |
| Scanner (Option) | |
| Type | 2D scanner |
| Interface | USB, RS-232 Option |
| Data Capture | 1D: Code 11, Code 128, Code 39, GS1-128,(UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN. ISBN, Interleaved 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar(RSS) 2D: PDF417, QR Code, Data Matrix, Aztec |
| Environmental | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH |
| Storage Condition | Below zero 20°C - 70°C, 10%RH - 90%RH |
| Built-in Options | |
| MSR | ISO 1,2,3 Tracks |
| WIFI | M.2 WiFi/BT module |
| Speaker | Built-in speaker |
| Bracket | Payment Termimal Bracket（ Adjustable Bracket Optional） |

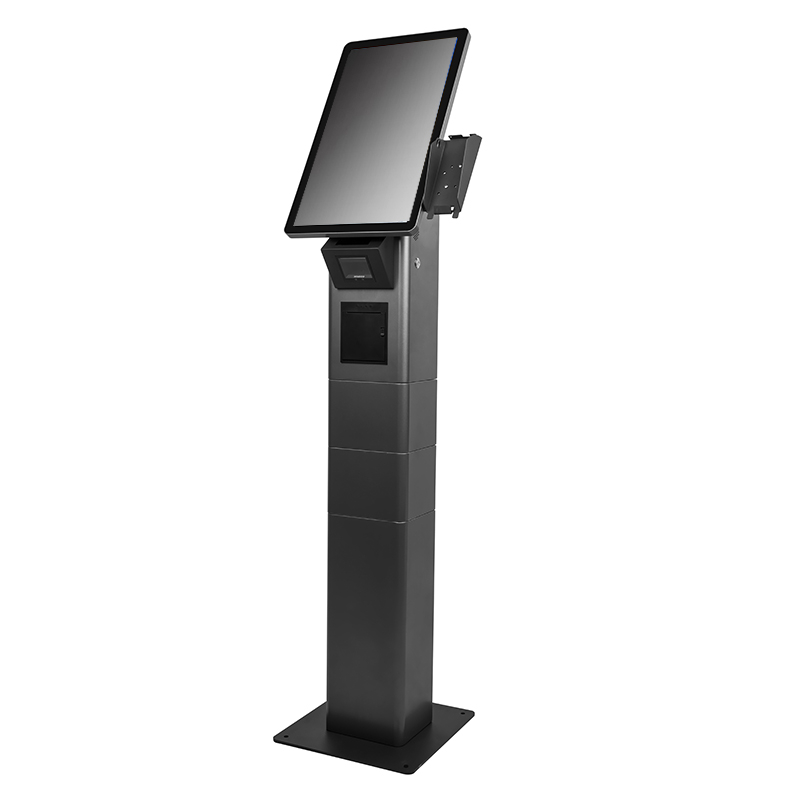

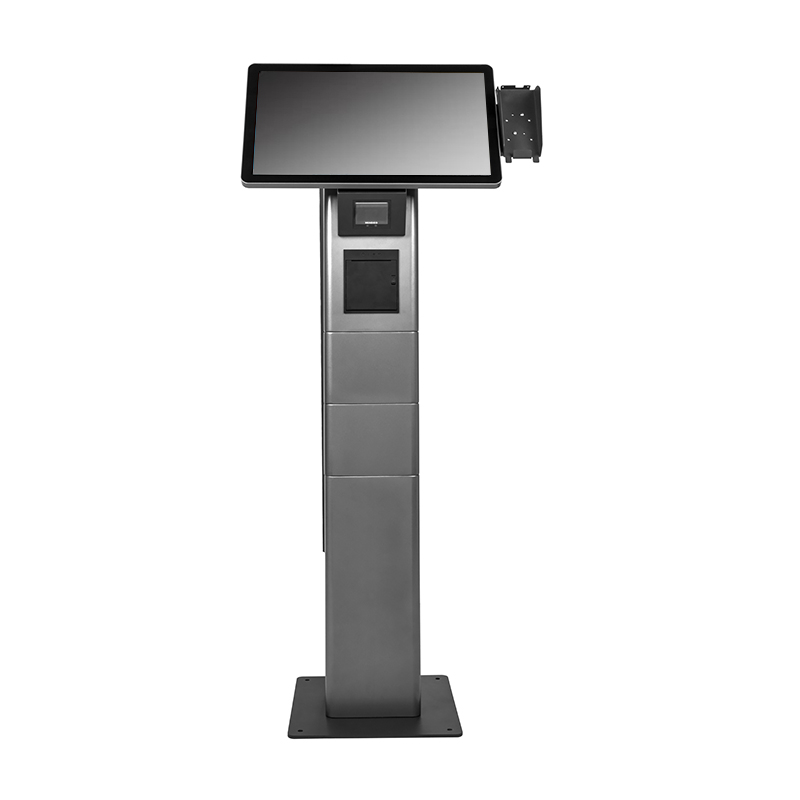

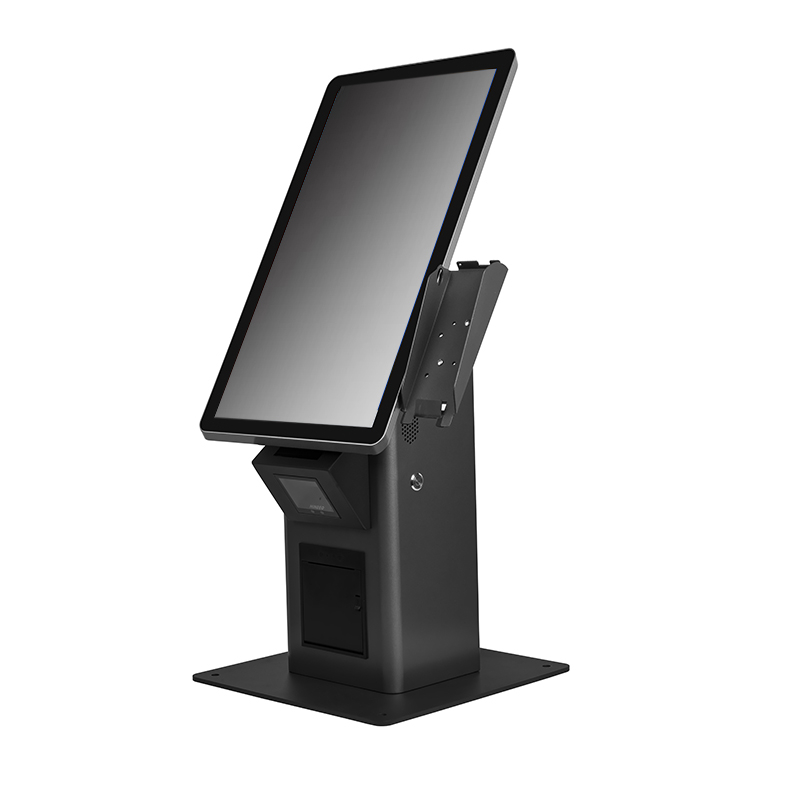

| Stand | Desktop base/Floor stand |
