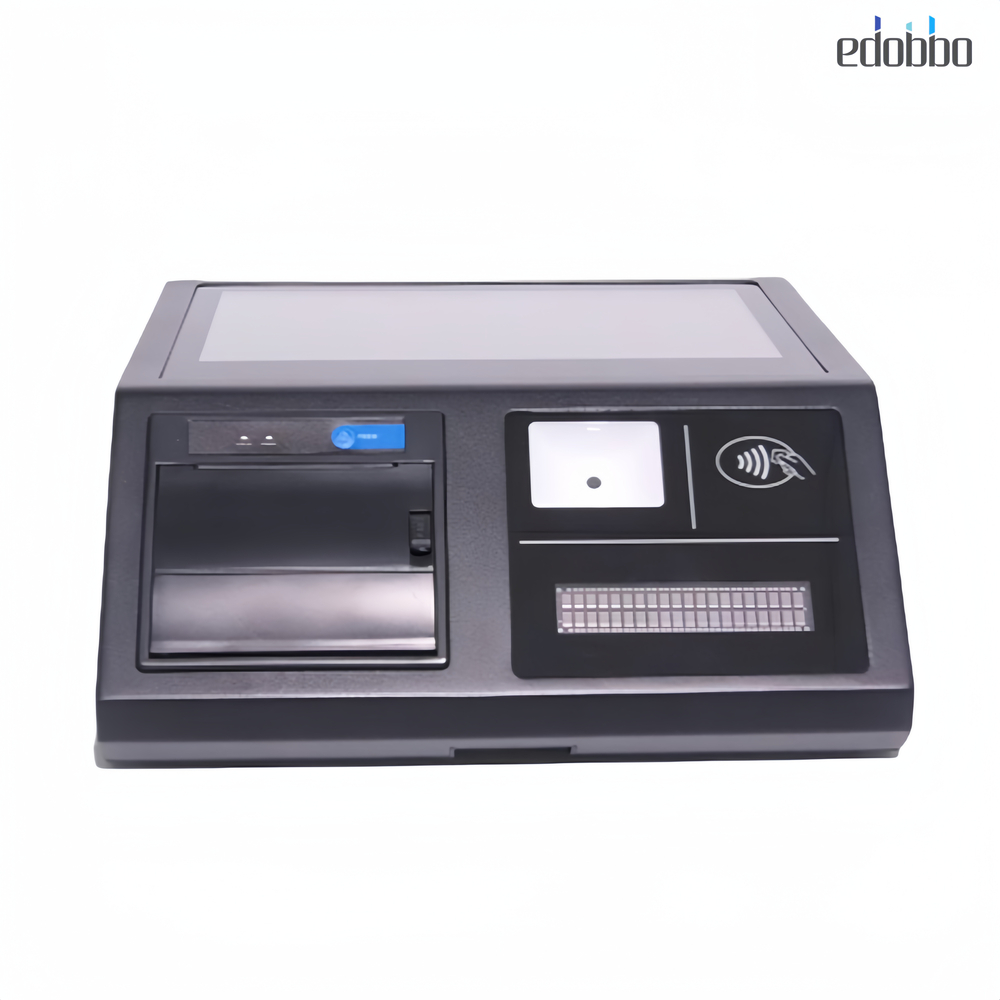

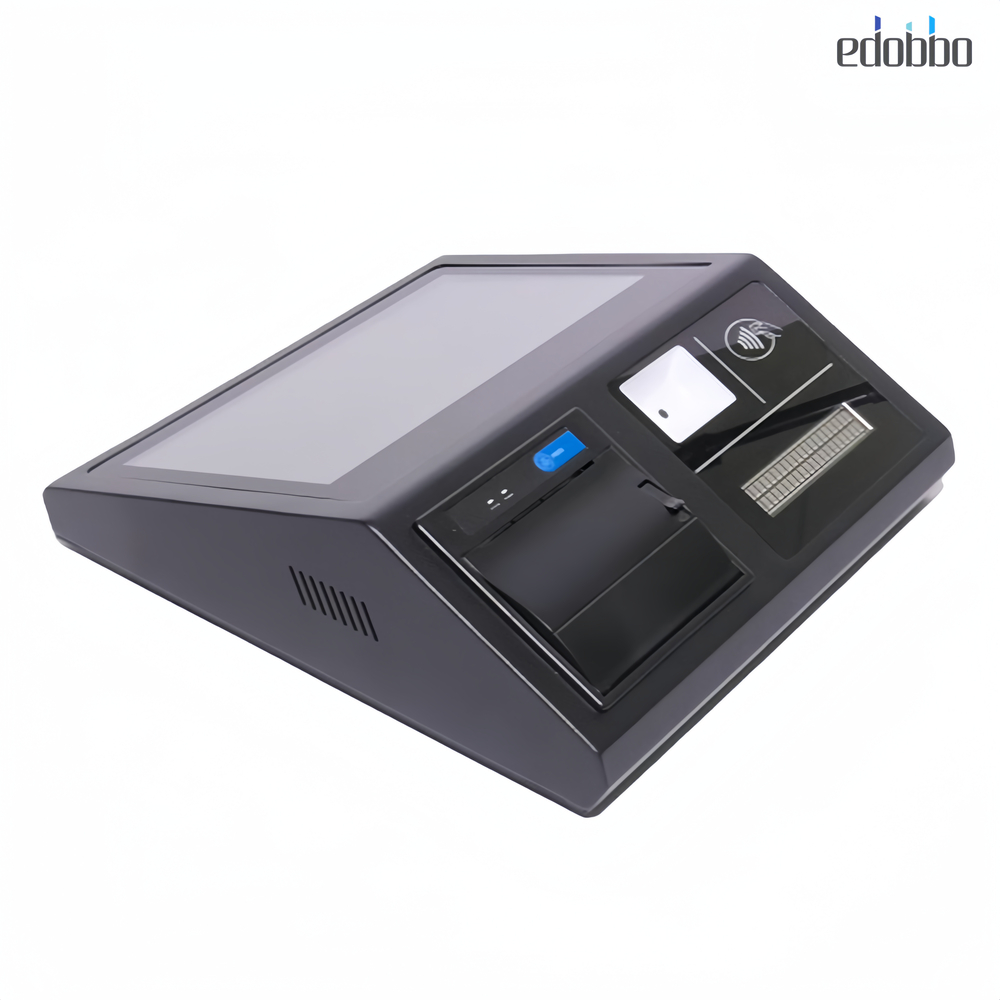

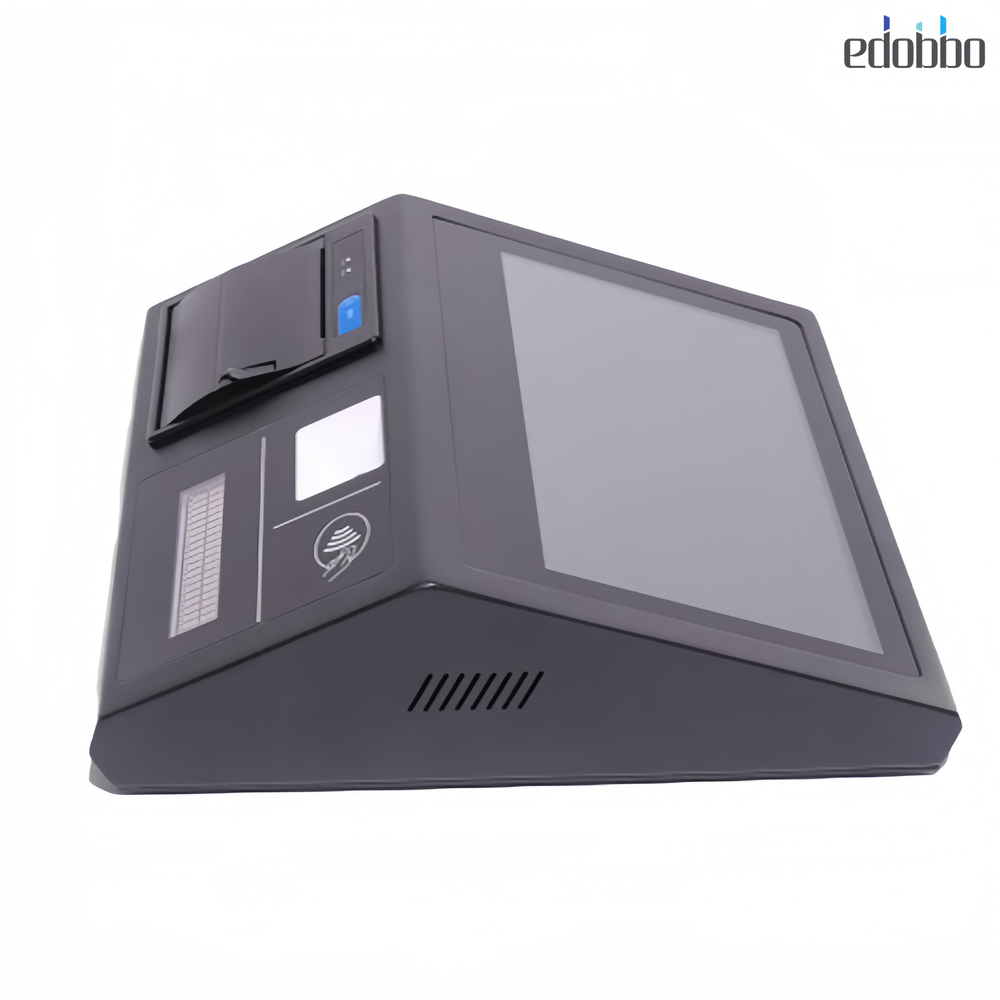

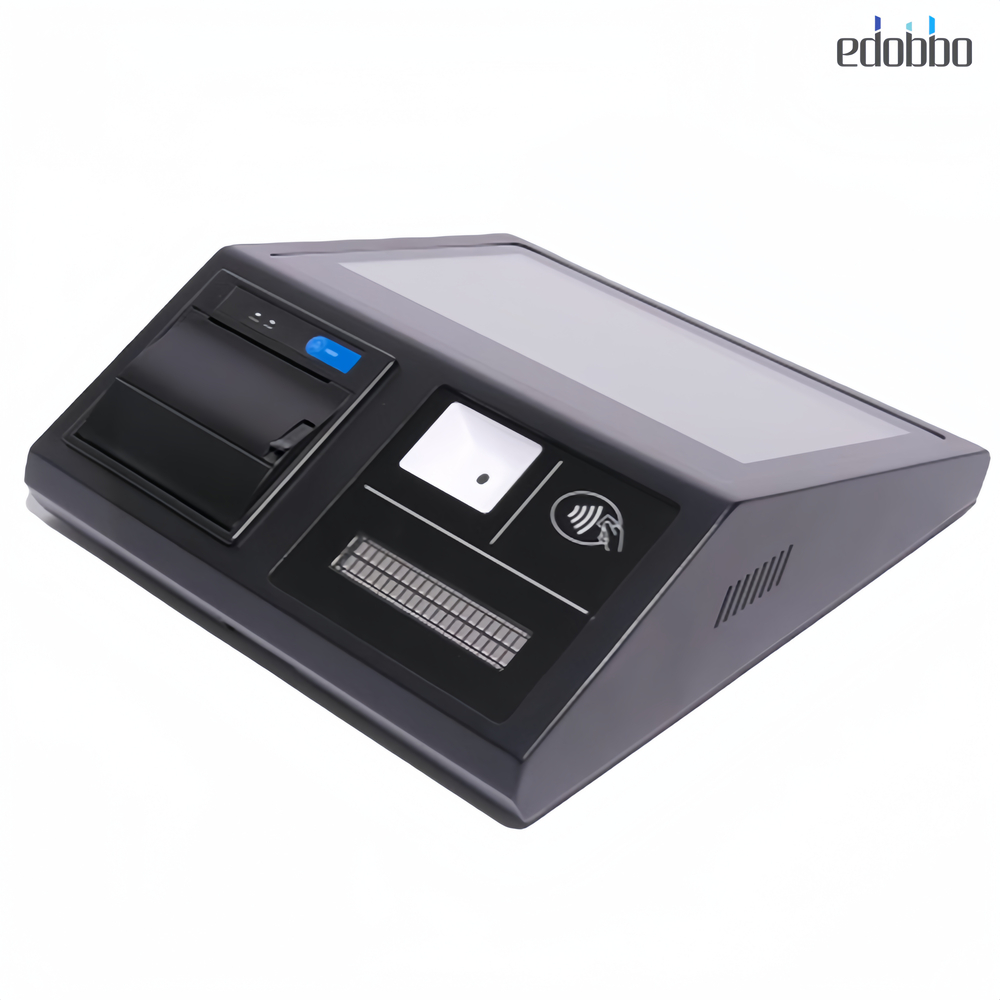

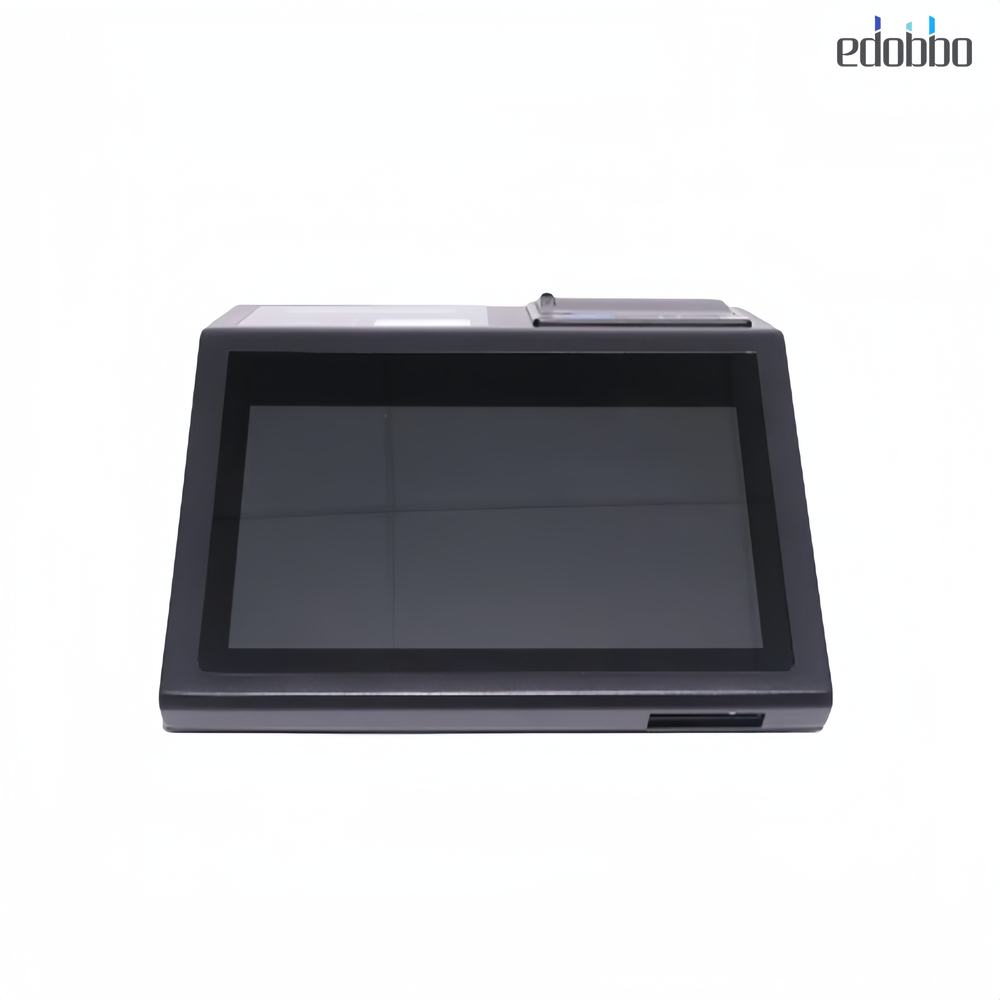

ED116W: windows and adroid system

1.CPU:J4125/J6412/I3/I5 2.Touch Type :Capacitive touch screen 3.Resolution:1366*768 4.Built-in 80mm thermal printer and s

Send Inquiry
Download

Features

Technical  Sheet
                                                                       Windows J4125                                                                      Windows J6412
Processor Celeron J4125M Cache, up to 2.7GhzCeleron J6412  1.5M Cache, up to 2.6Ghz
Memory1* SO-DIMM, DDR4, 2GB up to 8GB1*SO-DIMM, DDR4, 2GB, up to 16GB
Storage MSATA SSD , 64G ( default ), 128G/256G/12GB
Printer 80mm thermal  printer with autocutter
support thermal receipt & thermal sticker
commands : ESC/ POS, OPOS driver
Paper size : 80*70mm

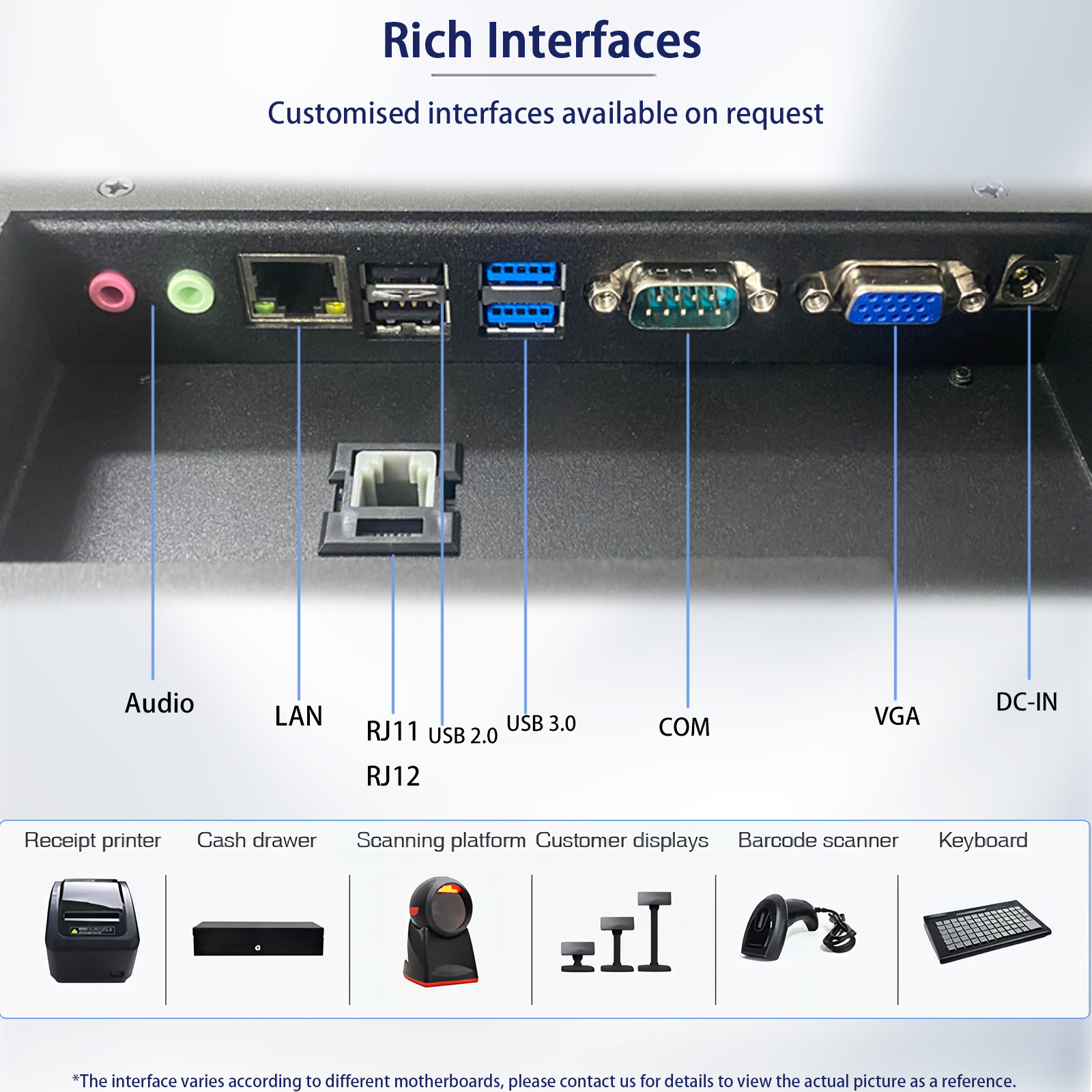

I/O USB5 (3.0*2, 2.0*3)
Serial ports : RS232*1
Display : VGA*1 , up to 1920*1080
LAN : RJ45*1
Cash drawer : RJ11*1
AUDIO*1
Display 14" IPS  ( BOE brand )
Brightness250NITS
Resolution 1920*1080
Speaker 1*3W (Optional )
Touch screenTrue Flat Capacitive Touch
ExpansionM2  Ekey for  wi-fi / Bluetooth, ( Module optional )Mini Pcle
LAN1*RJ5  1000M
Wireless 1*WLAN 802.11 a/b/g/n/ac + Bluetooth 4.2/ BLE (Optional )
OS Windows Windows  10 IOT , Windows  10 PRO, Linux
Power adaptor Device : 84W/12V  DC Jack adapter
Power supply : from 100Vac to 240Vac
Dimensions 335mm( L)*238mm( W)*339mm (H)
Weight 5.9KG
