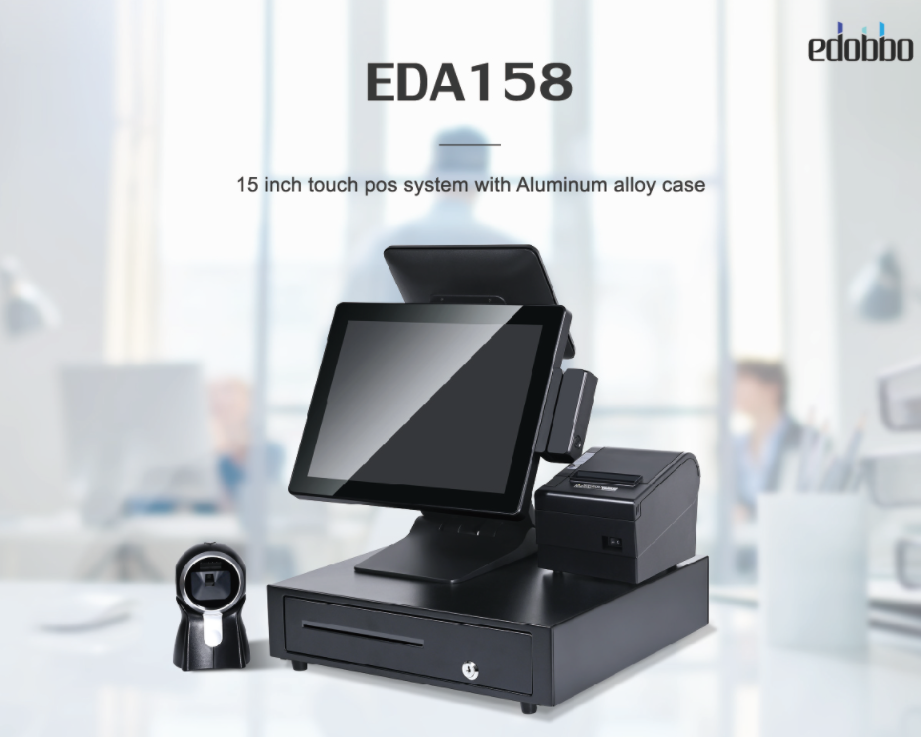

EDA158:15 inch full metal case with fold base
1.Feature:Thin and fashionable 2.CPU:J4125/J1900/I3/I5 3.VFD:9.7inch 4.With buletooth and wifi
Features
| EDA158 | |
| Specifications | |
| Display & Touch | |
| LCD | 15-inch Original LCD |
| Resolution | 1024*768 |
| Touchscreen | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| System Configuration | |
| Processor | Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.6Ghz Intel Core i3 4gen/7th/8th fanless Intel Core i5 4gen/8th/10th fanless |
| Cooling | Fanless |
| System Memory | DDR4 SO-DIMM x 2, max. 16GB |
| Storage Device | SSD 32GB standard, up to 512GB, or HDD 500GB |
| OS support | Windows 10, Window11，POS Ready7, Linux |
| I/O Expansion | |
| Serial Port | 2*COM(RS232) |
| Standard USB Port | 5*USB2.0, 1*USB3.0 |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | 1*VGA or 1*VGA & 1*HDMI |
| Audio | 1*Mic-in, 1*Line-out |
| Expansion Slot | RJ11 |
| Power DC-IN | Input AC 100~240V/50~60hz, Output DC12V/5A |
| Environmental | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH |
| Storage Condition | Below zero 20°C - 70°C, 10%RH - 90%RH |
| Built-in Options | |
| MSR | ISO 1,2,3 Tracks(Option) |
| WIFI | M.2 WiFi/BT module |
| Speaker | Built-in speaker(Option) |
| Wall-mounted | VESA 75*75mm/100*100 mm |
| Attachment Options | |
| POS Monitor | Non-touch TFT LCD: 9.7"/12.1/15" PCAP touch TFT LCD: 9.7"/12/15" |
| Line Display | 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display |
| Accessories | MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor |
| www.edobbo.com | |
Services:
1. All products have been tested and 100% inspection before shipment.
2. Support design your logo and imprint on products and let your logo shine anywhere.
3. Offer customized packaging services.
4. We can provide OEM/ODM services based on customer's requirements.
5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.
About Product packaging
MetInfo enterprise content manager system | MetInfo CMS
The product uses yellow corrugated boxes by default. We support OEM services.
( If you need customized color box packaging, please consult our customer service.)
