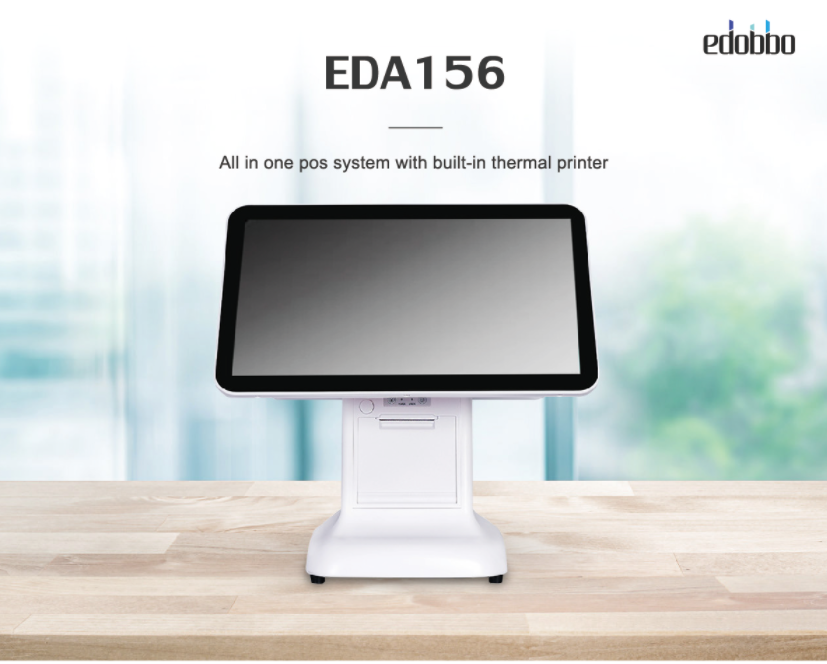

ED156:with built-in thermal printer （scanner）
ED156SpecificationsDisplay & Touch LCD15.6-inch(16:9) Original LCDResolution 1366*768TouchscreenTrue-flat PCAP touch with mul
Features
| ED156 | |
| Specifications | |
| Display & Touch | |
| LCD | 15.6-inch(16:9) Original LCD |
| Resolution | 1366*768 |
| Touchscreen | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| System Configuration | |
| Processor | Intel Celeron J4125 Quad-Core, Up to 2.70 GHz Intel Celeron J6412 Quad-Core, Up to 2.6Ghz Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th High Performance CP |
| Cooling | Fanless/CPU fan |
| System Memory | DDR4 SO-DIMM x 2, max. 16GB |
| Storage Device | SSD 32GB standard, up to 512GB, or HDD 500GB |
| OS support | Windows 10, Window11，POS Ready7, Linux |
| I/O Expansion | |
| Display | 1*VGA or 1*HDMI+1*VGA |
| USB | 6*USB (Front 2, rear 4) |
| Serial | 3*COM |
| LAN | 1*Gigabit Ehernet,RJ45 |
| Cash Drawer | 1*RJ11 |
| Audio | 1*Line-out, 1*Mic-in |
| Power DC-IN | Input AC 100~240V/50~60hz,Output DC12V/7.5A |
| Environmental | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH |
| Storage Condition | Below zero 20°C - 70°C, 10%RH - 90%RH |
| Built-in Options | |
| Printer | 58mm / 80mm built-in thermal printer |
| Scanner | 2D scanner |
| MSR | ISO 1,2,3 Tracks(Option) |
| WIFI | M.2 WiFi/BT module |
| Speaker | Built-in speaker(Option) |
| Wall-mounted | VESA 75*75mm/100*100 mm |
| Attachment Options | |
| POS Monitor | Non-touch TFT LCD: 9.7"/12.1/15" PCAP touch TFT LCD: 9.7"/12/15" |
| Line Display | 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display |
| Accessories | MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor |
