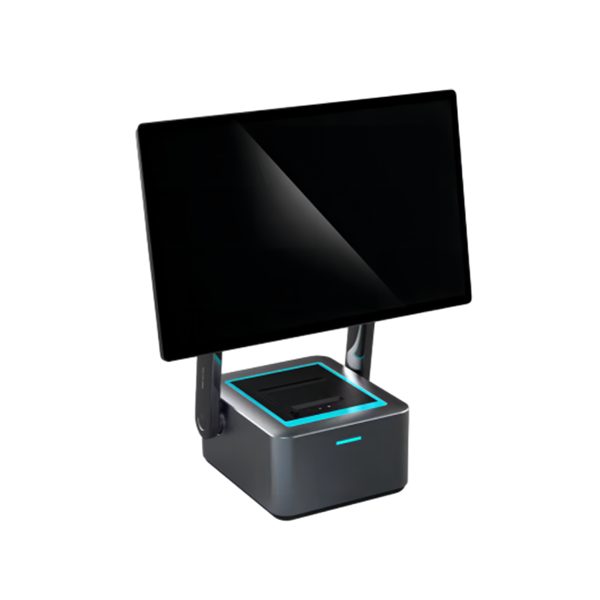

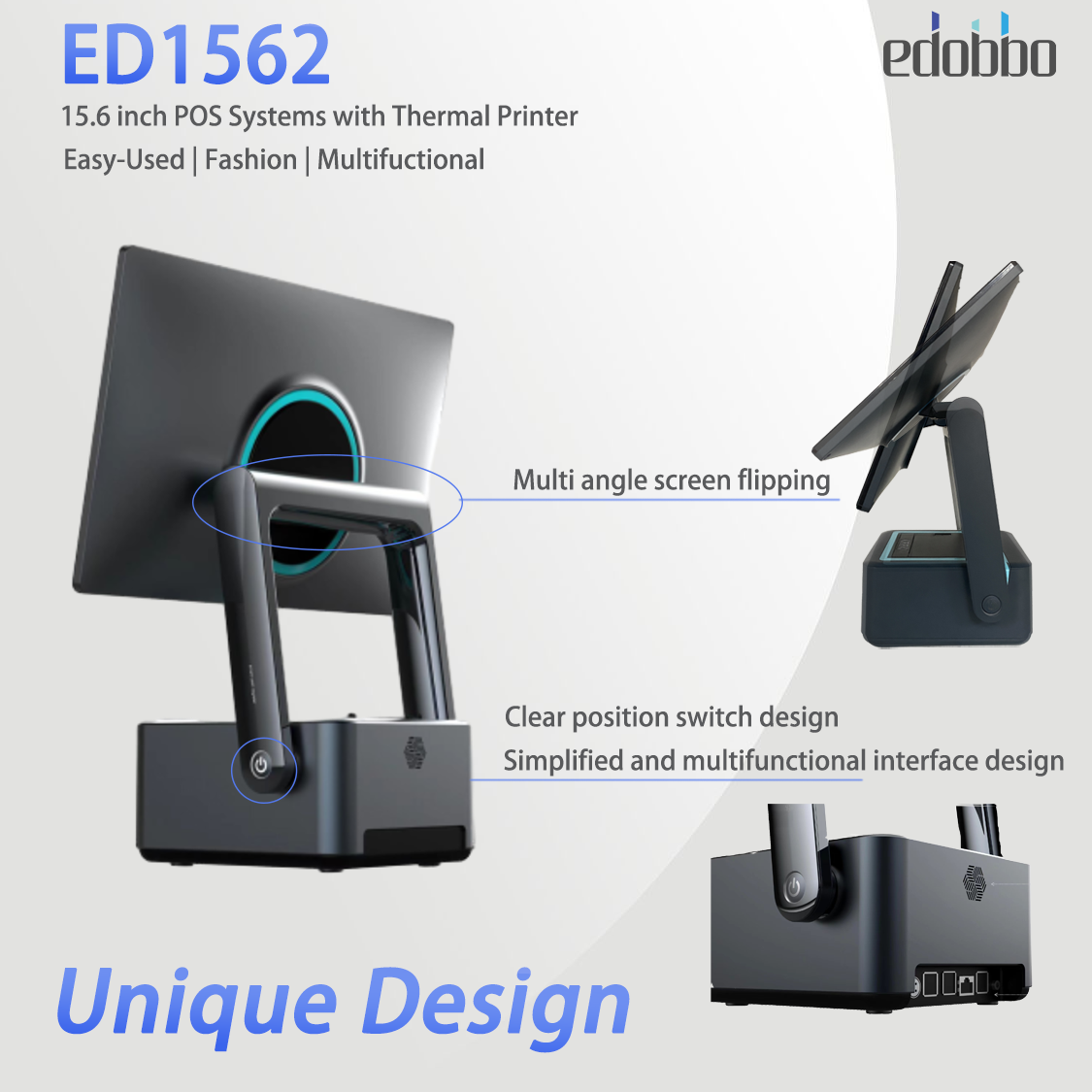

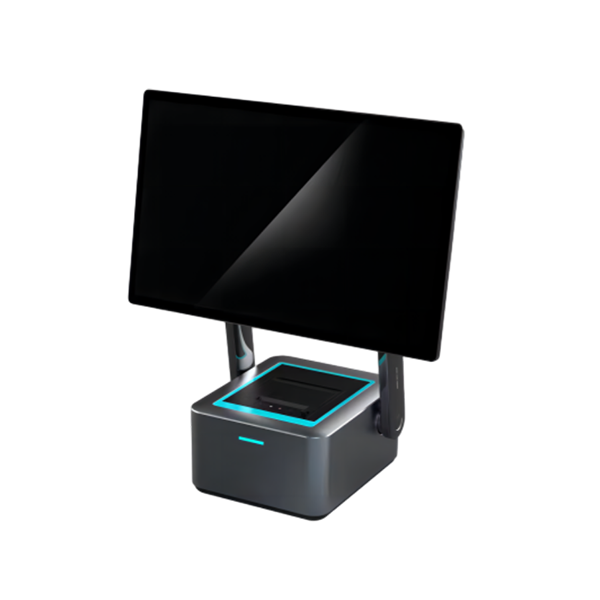

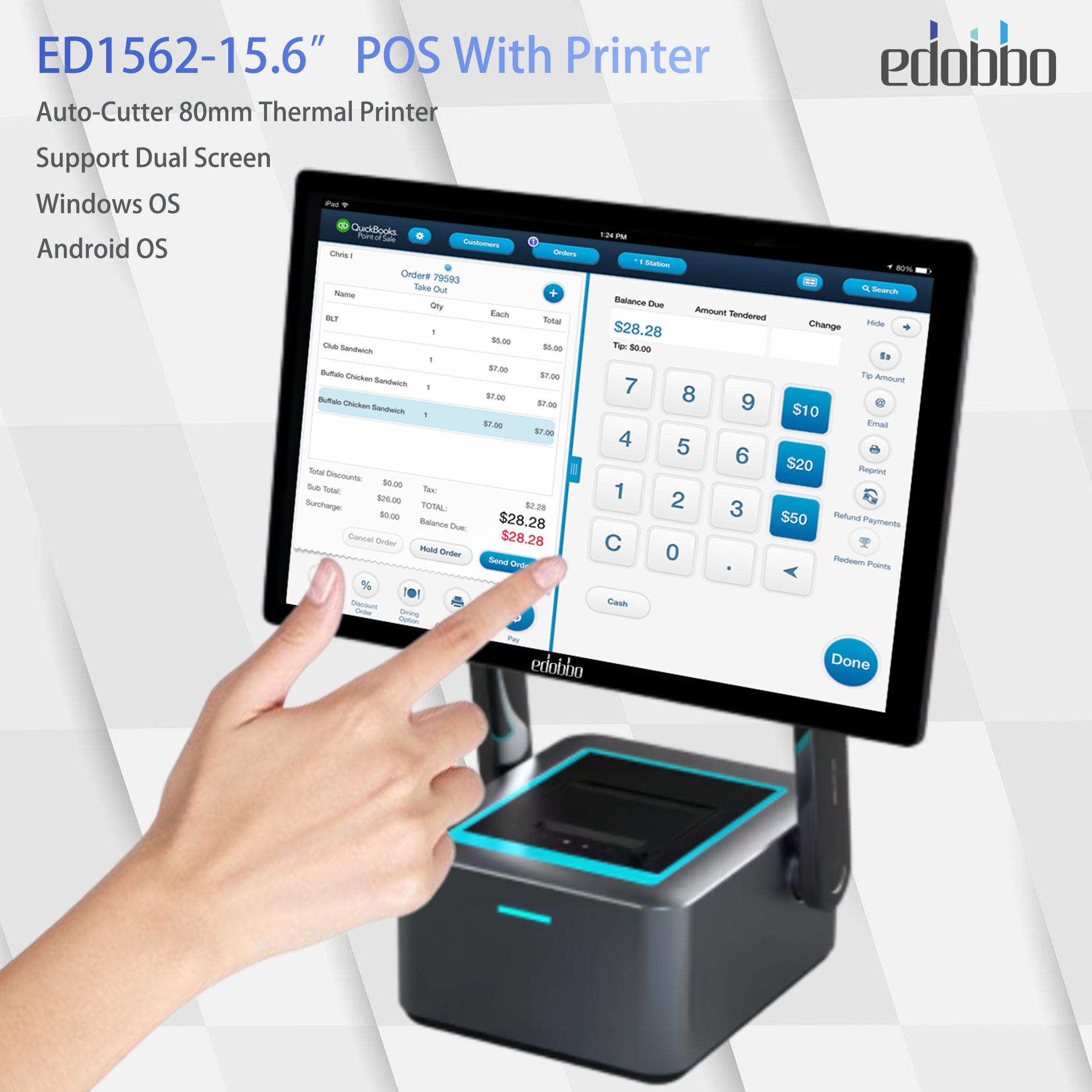

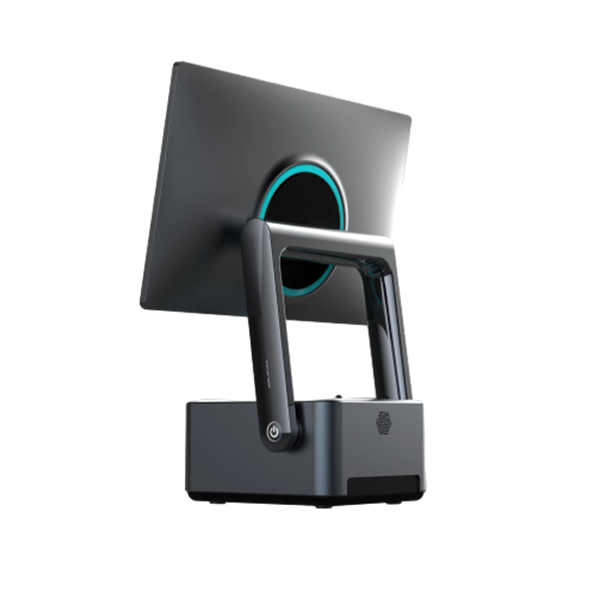

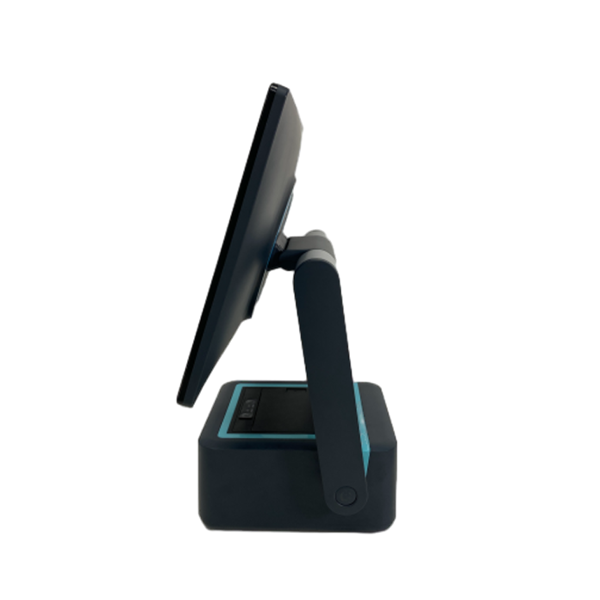

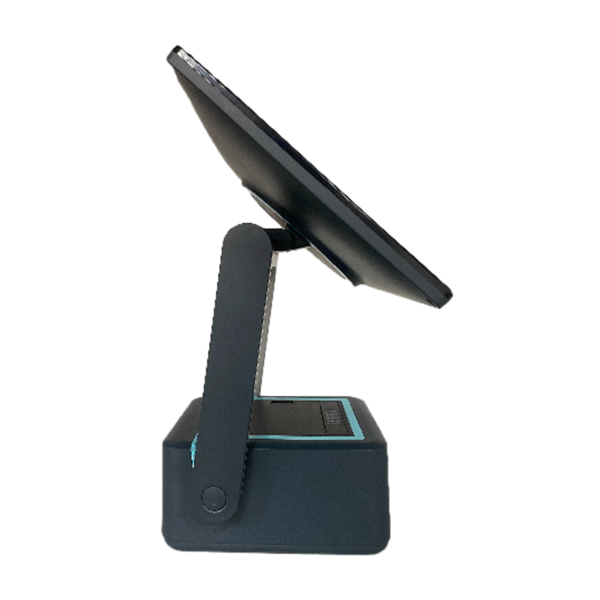

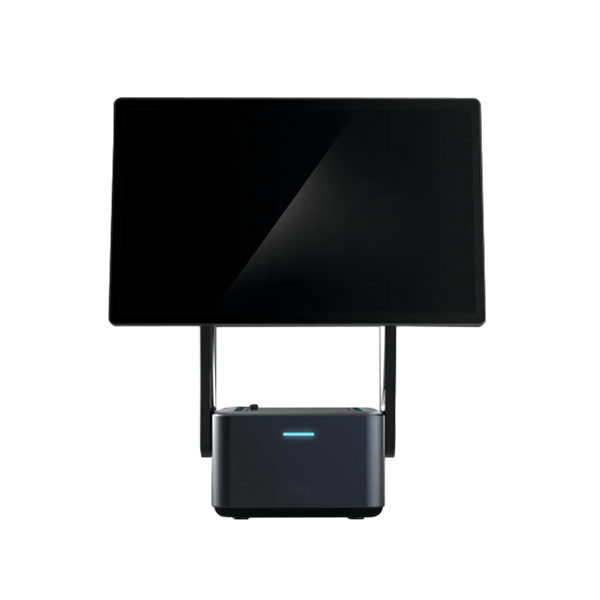

ED1562:15.6 inch Dual Screen with 80mm Thermal Printer
1.OS:Windows/Android 2.CPU:J4125/RK3566 3.Resolution:1366*768 4.VFD:11.6inch
Features
| ED1562 | |
| Specifications | |
| Display & Touch | |
| LCD | 15.6-inch(16:9) Original LCD |
| Resolution | 1366*768/1920*1080 |
| Touchscreen | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| System Configuration | |
| Processor | Intel Celeron J4125 Quad-Core, Up to 2.70 GHz |
| Cooling | Fanless/CPU fan |
| System Memory | DDR4 SO-DIMM x 2, max. 16GB |
| Storage Device | SSD 32GB standard, up to 256GB |
| OS support | Windows 10, Window11，POS Ready7, Linux |
| I/O Expansion | |
| USB | 6*USB (3.0*2 , 2.0*4) |
| LAN | 1*Gigabit Ehernet,RJ45 |
| Cash Drawer | 1*RJ11 |
| Audio | 1*Line-out, 1*Mic-in |
| Power DC-IN | Input AC 100~240V/50~60hz,Output DC12V/7.5A |
| Environmental | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH |
| Storage Condition | Below zero 20°C - 70°C, 10%RH - 90%RH |
| Built-in Options | |

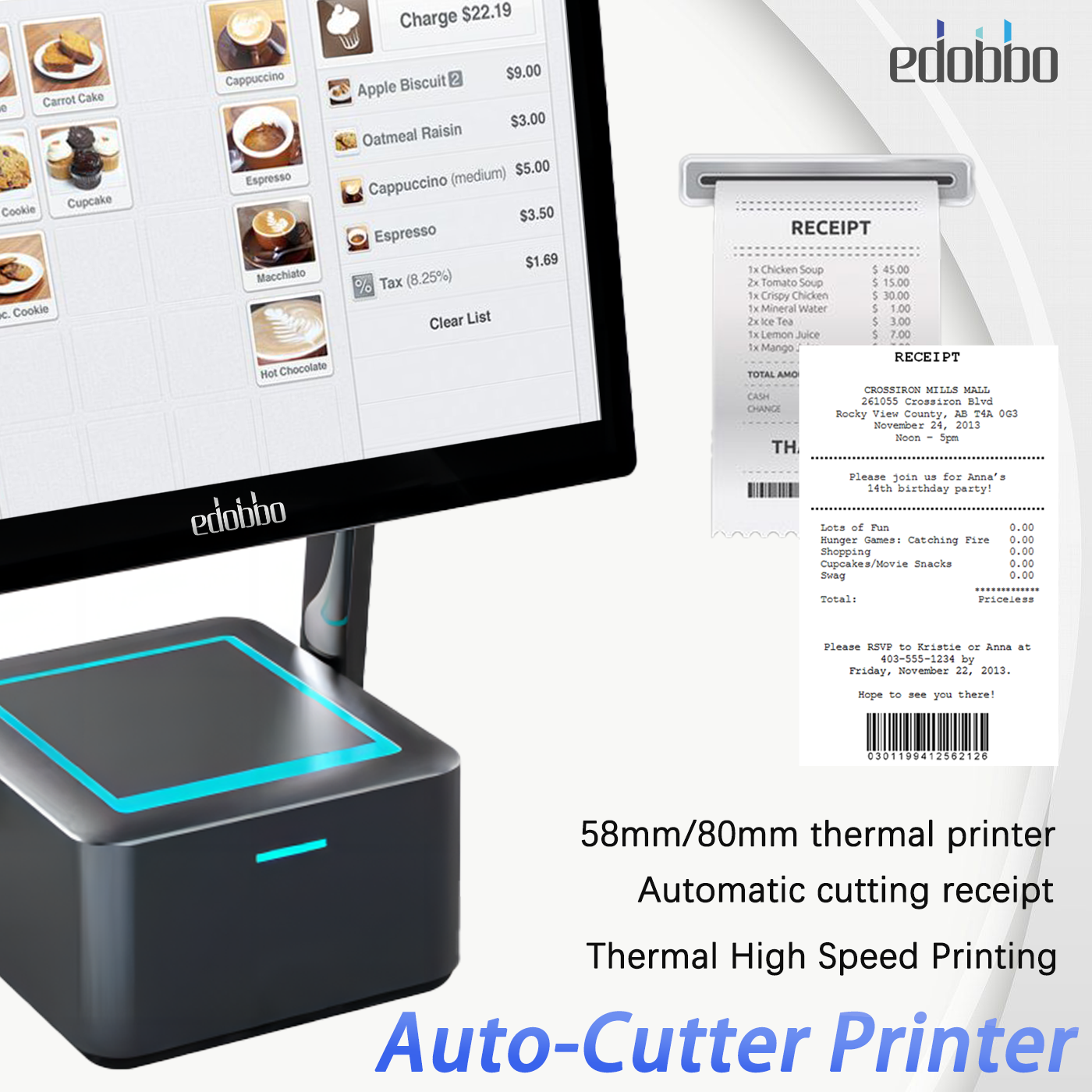

| Printer | 58mm / 80mm built-in thermal printer |
| Bluetooth （Option） | BT module |
| WIFI（Option） | 2.4G Hz |
| Speaker | Built-in speaker 3W |
| Attachment Options | |
| POS Monitor | Non-touch TFT LCD: 11.6//15.6" PCAP touch TFT LCD: 11.6/15.6" |
Services:
1. All products have been tested and 100% inspection before shipment.
2. Support design your logo and imprint on products and let your logo shine anywhere.
3. Offer customized packaging services.
4. We can provide OEM/ODM services based on customer's requirements.
5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.
About Product packaging
MetInfo enterprise content manager system | MetInfo CMS
The product uses yellow corrugated boxes by default. We support OEM services.
( If you need customized color box packaging, please consult our customer service.)
