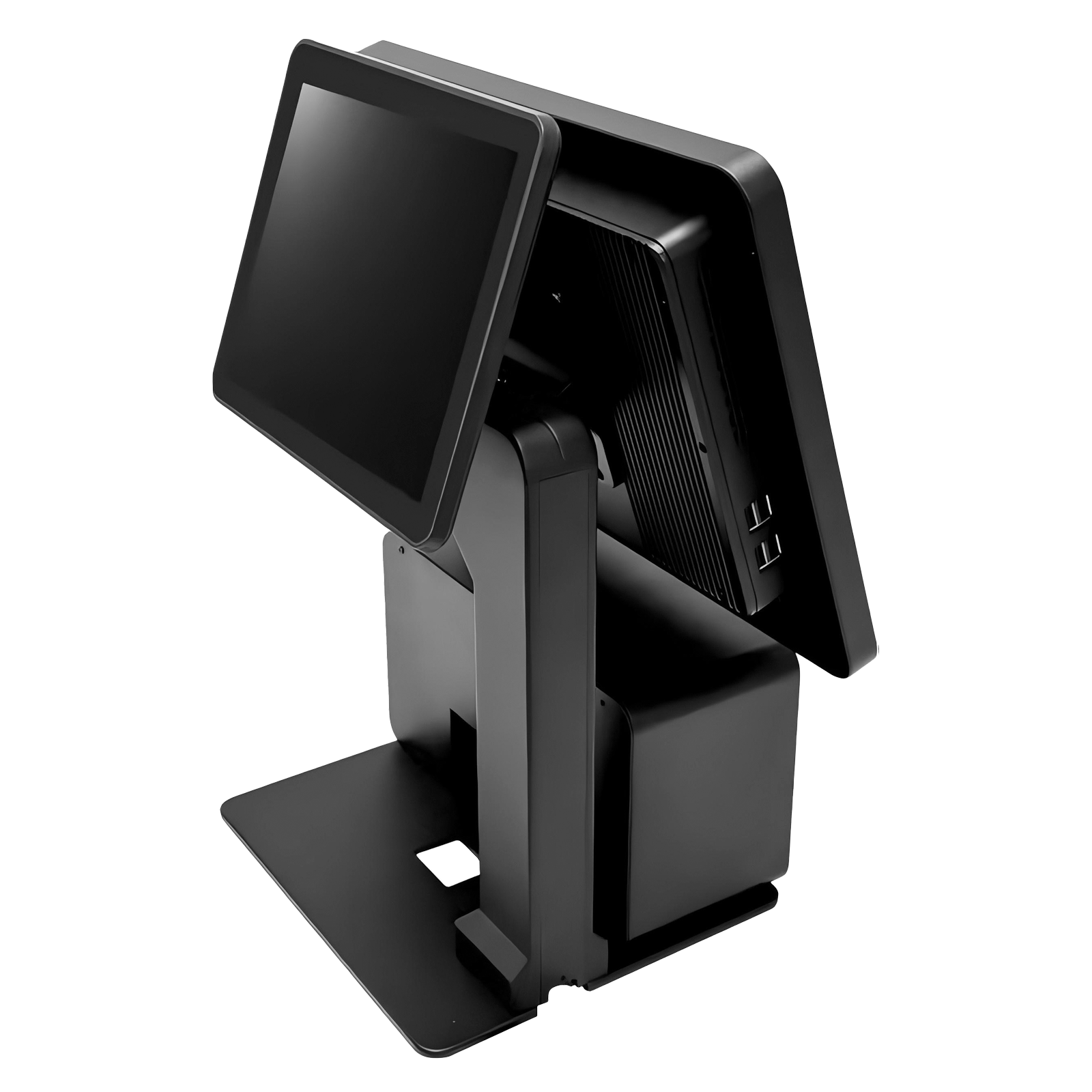

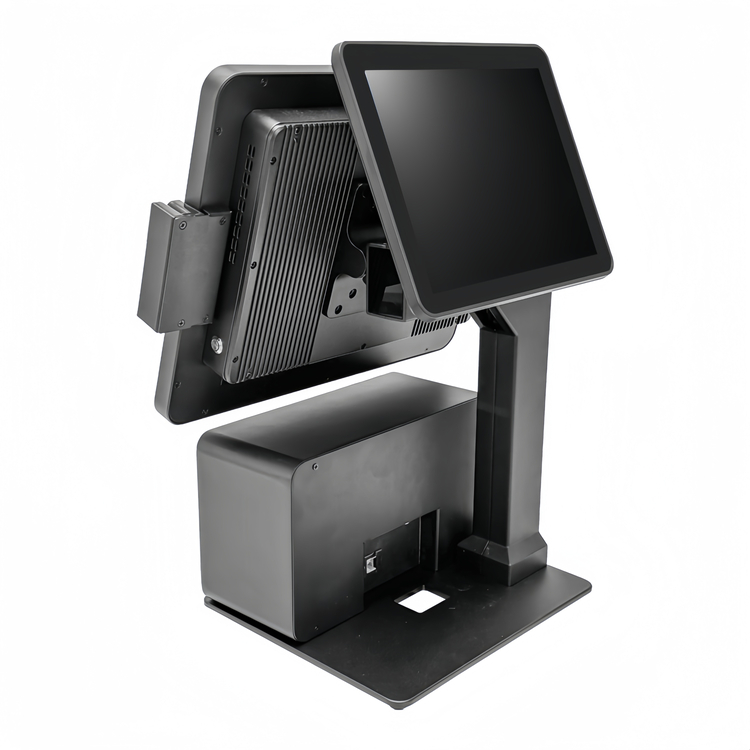

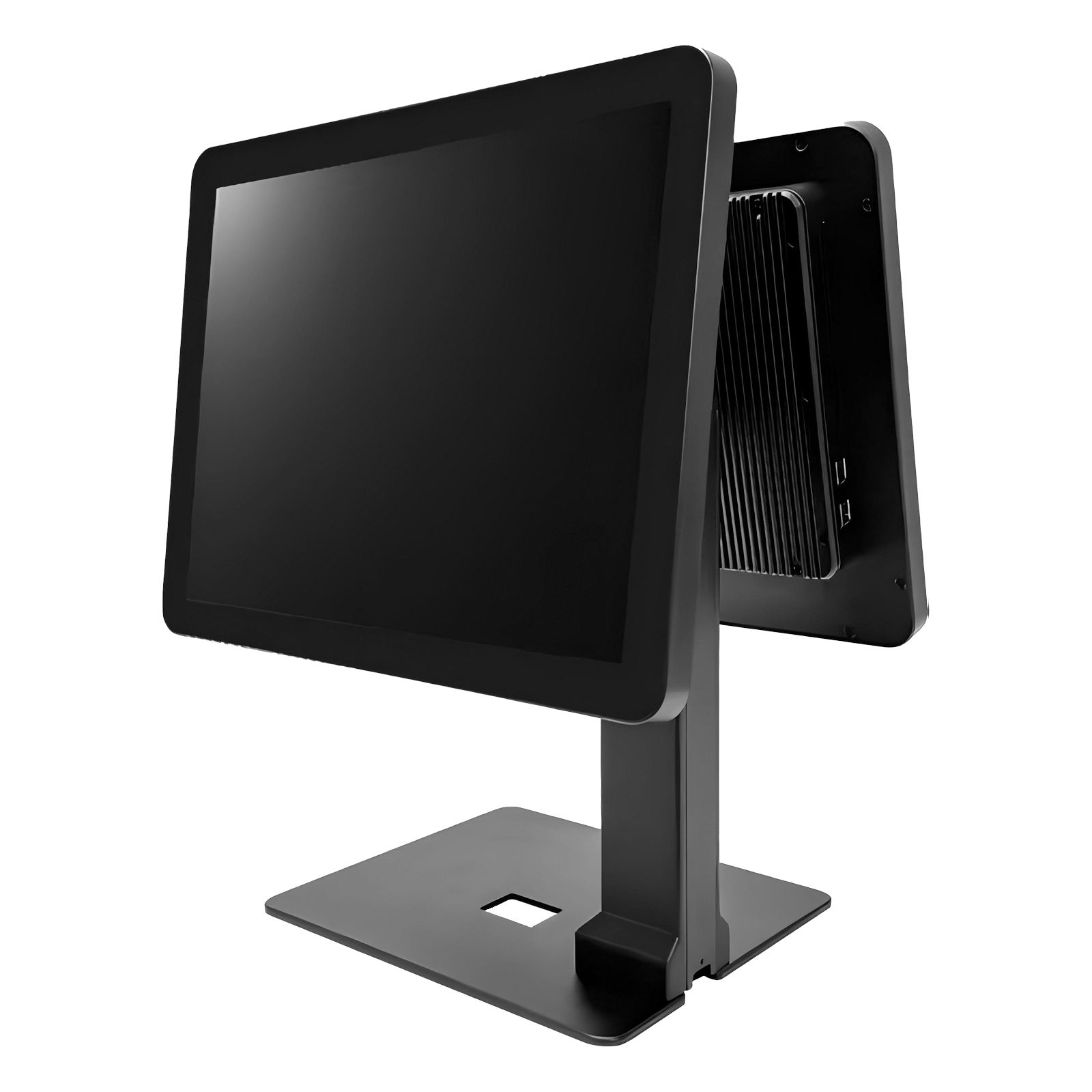

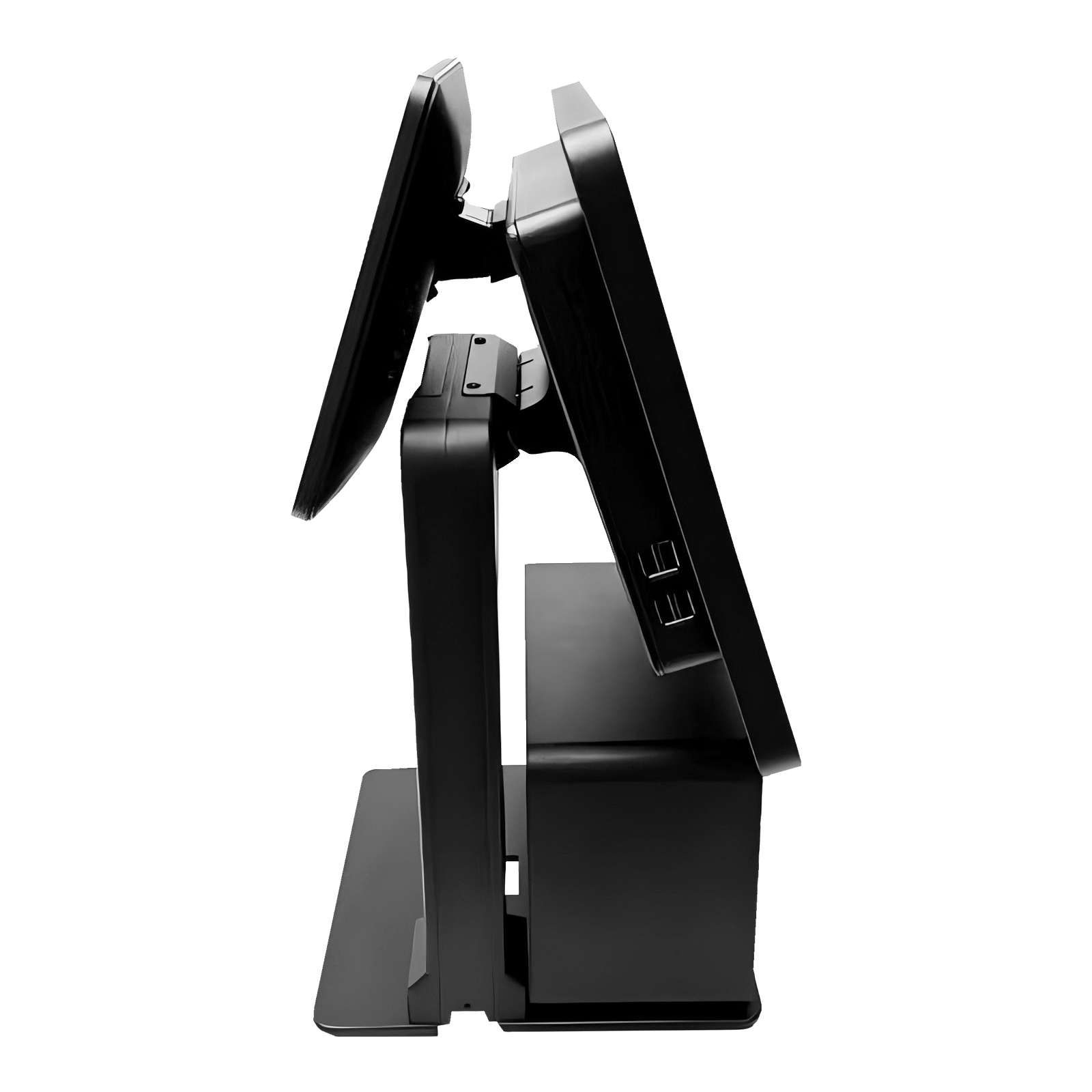

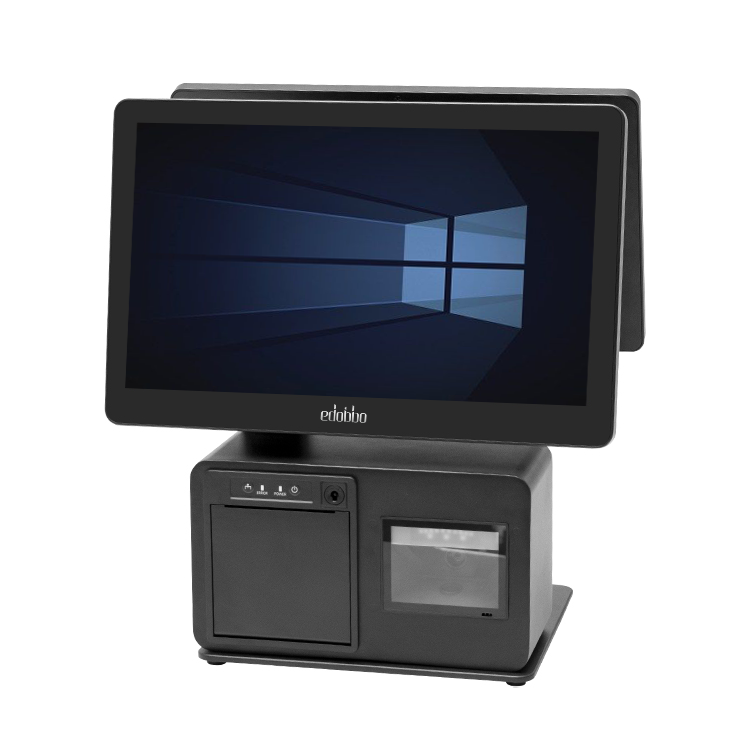

EDA151-15/15.6 Inch Cash Register with Portable Scanning and Printing Module

EDA151SpecificationsDisplay & Touch LCD 15/15.6-inch Original LCDResolution 1024*768/1366*768/1920*768TouchscreenTrue-flat P

Send Inquiry
Download

Features

EDA151-15/15.6 Inch Cash Register with Portable Scanning and Printing Module(图1)

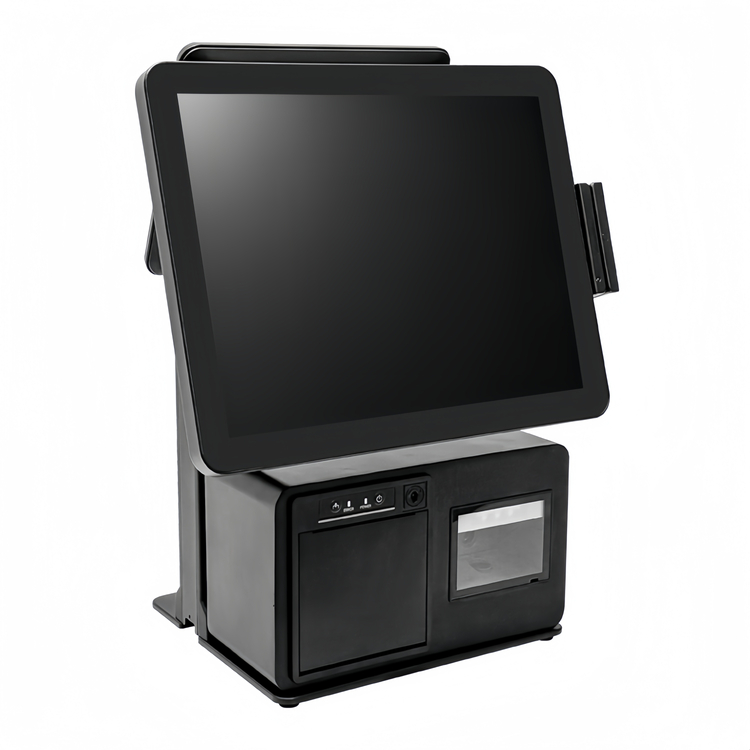

EDA151-15/15.6 Inch Cash Register with Portable Scanning and Printing Module(图2)

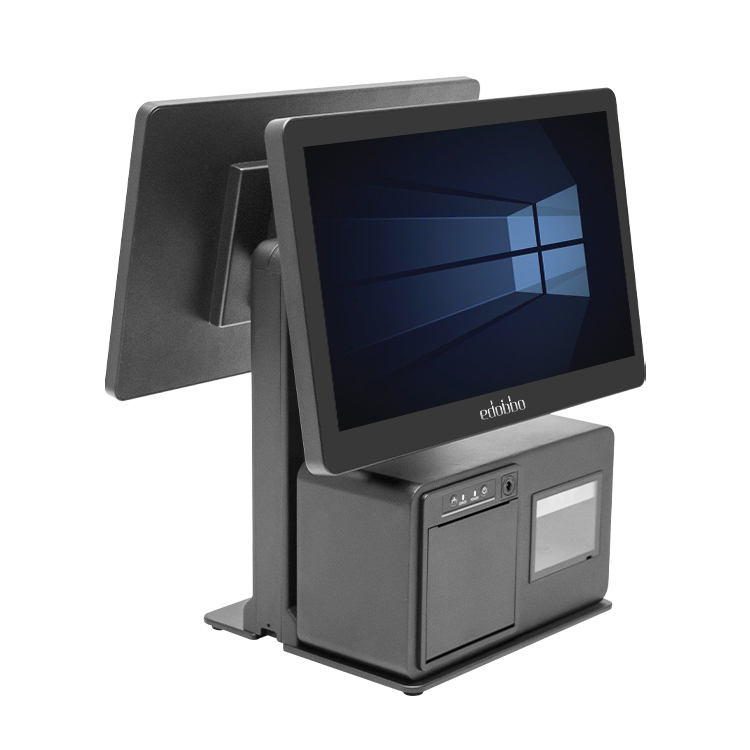

EDA151-15/15.6 Inch Cash Register with Portable Scanning and Printing Module(图3)

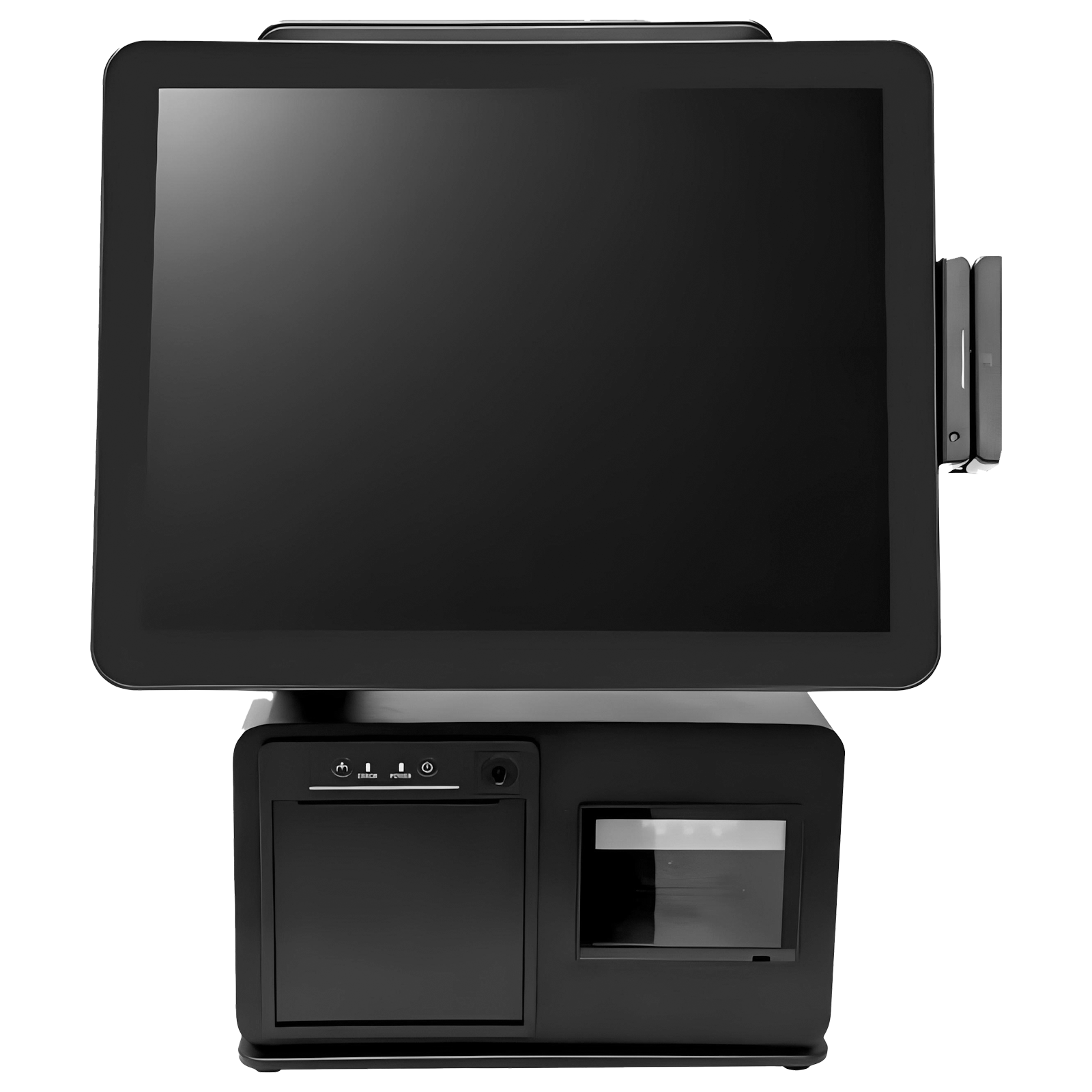

EDA151-15/15.6 Inch Cash Register with Portable Scanning and Printing Module(图4)


EDA151
Specifications
Display & Touch
LCD 15/15.6-inch  Original LCD
Resolution 1024*768/1366*768/1920*768
TouchscreenTrue-flat PCAP touch with multi-touch support (IP65 on front panel)
System Configuration
ProcessorIntel Celeron J4125 Quad-Core, Up to 2.70 GHz
Intel Celeron J6412 Quad-Core, Up to 2.6Ghz
Intel Core i3 4gen/7th/8th fanless
Intel Core i5 4gen/8th/10th fanless
CoolingFanless
System MemoryDDR4 SO-DIMM x 2, max. 16GB
Storage DeviceSSD 32GB standard, up to 512GB, or HDD 500GB
OS supportWindows 10, Window11，POS Ready7, Linux
I/O Expansion
Serial Port 2*COM(RS232)
Standard USB Port2*USB2.0, 4*USB3.0
LAN Port10/100/1000 Mb x 1
Display Port1*VGA or 1*VGA & 1*HDMI
Audio1*Mic-in, 1*Line-out
Expansion SlotRJ11
Power DC-INInput AC 100~240V/50~60hz, Output DC12V/5A
Environmental
Operating Condition0°C - 50°C, 20%RH - 90%RH
Storage ConditionBelow zero 20°C - 70°C, 10%RH - 90%RH
Built-in Options
MSRISO 1,2,3 Tracks(Option)
WIFIM.2 WiFi/BT module
SpeakerBuilt-in speaker(Option)
Wall-mountedVESA 75*75mm/100*100 mm
Attachment Options
POS MonitorNon-touch TFT LCD: 9.7"/11.6/15/15.6"
PCAP touch TFT LCD: 9.7"/11.6/15/15.6"
Line Display2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display
AccessoriesMSR; iButton; 2D Scanner; RFID; Fingerprint Sensor
www.edobbo.com


Services:


1. All products have been tested and 100% inspection before shipment.

2. Support design your logo and imprint on products and let your logo shine anywhere.

3. Offer customized packaging services.

4. We can provide OEM/ODM services based on customer's requirements.

5. We own the best after-sale services. If any problems happen, our team will do their best to solve it as soon as possible.


About Product packaging

MetInfo enterprise content manager system | MetInfo CMS

The product uses yellow corrugated boxes by default. We support OEM services.

( If you need customized color box packaging, please consult our customer service.)
